Three-phase electric motors are widely used in industrial and commercial applications due to their efficiency and reliability. However, there may be occasions where you need to reverse the rotation direction of a 3-phase motor. Whether it's for adjusting machinery, troubleshooting, or changing the operational flow of a process, knowing how to reverse a 3-phase motor can be invaluable.

Understanding the Basic Principle

Three-phase asynchronous motor stator winding plus symmetrical voltage, a rotating air gap magnetic field is generated, the rotor winding conductors cut the field to produce induced electric potential. As the rotor winding is in a short-circuit condition, a rotor current is generated. The interaction of the rotor current with the air gap magnetic field produces an electromagnetic torque, which drives the rotor to rotate. The speed of the motor must be lower than the synchronous speed of the magnetic field, because only then can the rotor conductors induce an electromotive force to produce a rotor current and an electromagnetic torque. (More specific and detailed introduction of the principle, we will have a systematic introduction in a later artcle.)

Reversing the Rotation

Reversing the rotation of a 3-phase motor typically involves changing the phase sequence of the power supply to the motor. There are a few ways to achieve this

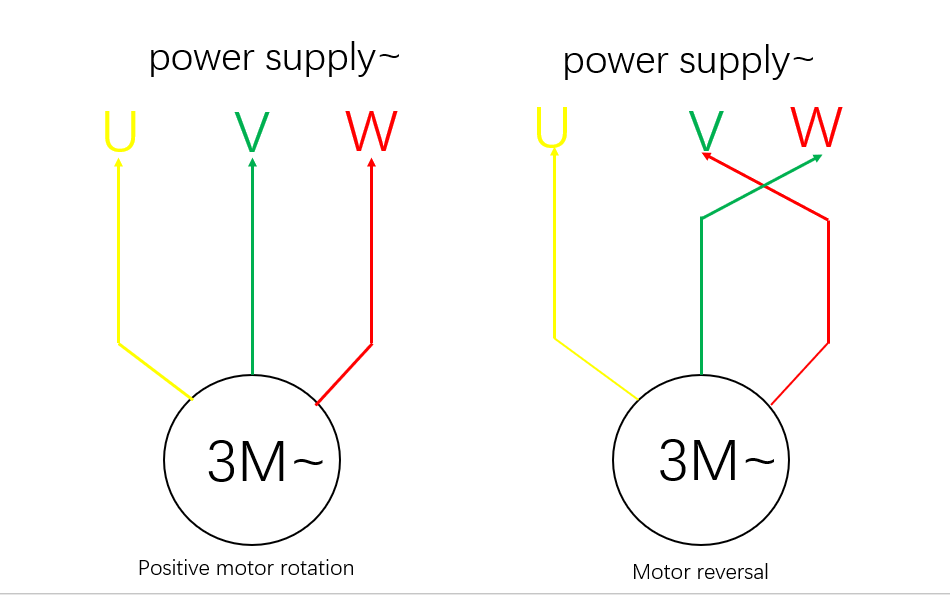

1.Switching the Power Leads

The simplest method is to physically swap the connections of any two of the three power leads going to the motor. This effectively reverses the phase sequence and thus the rotation direction.

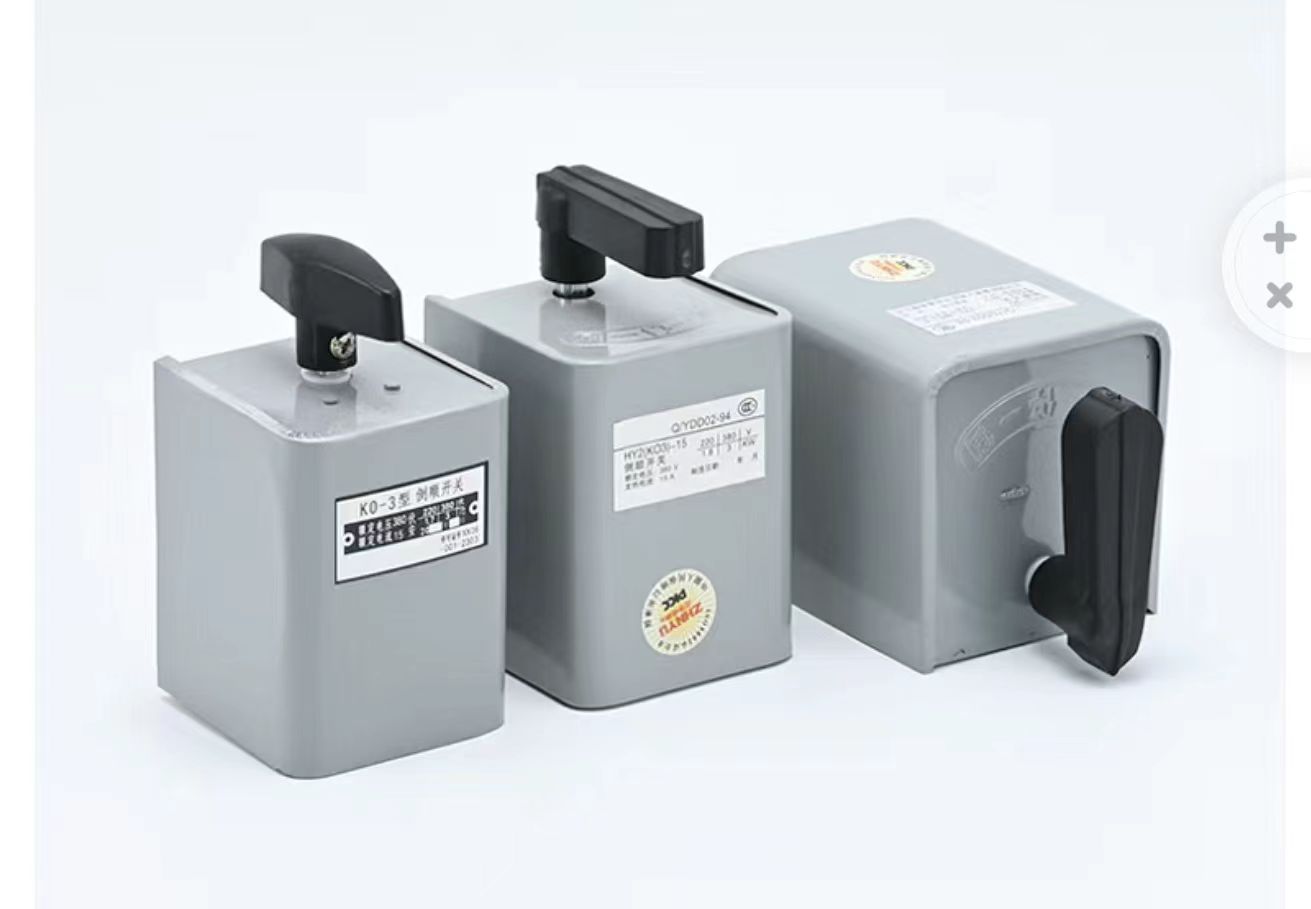

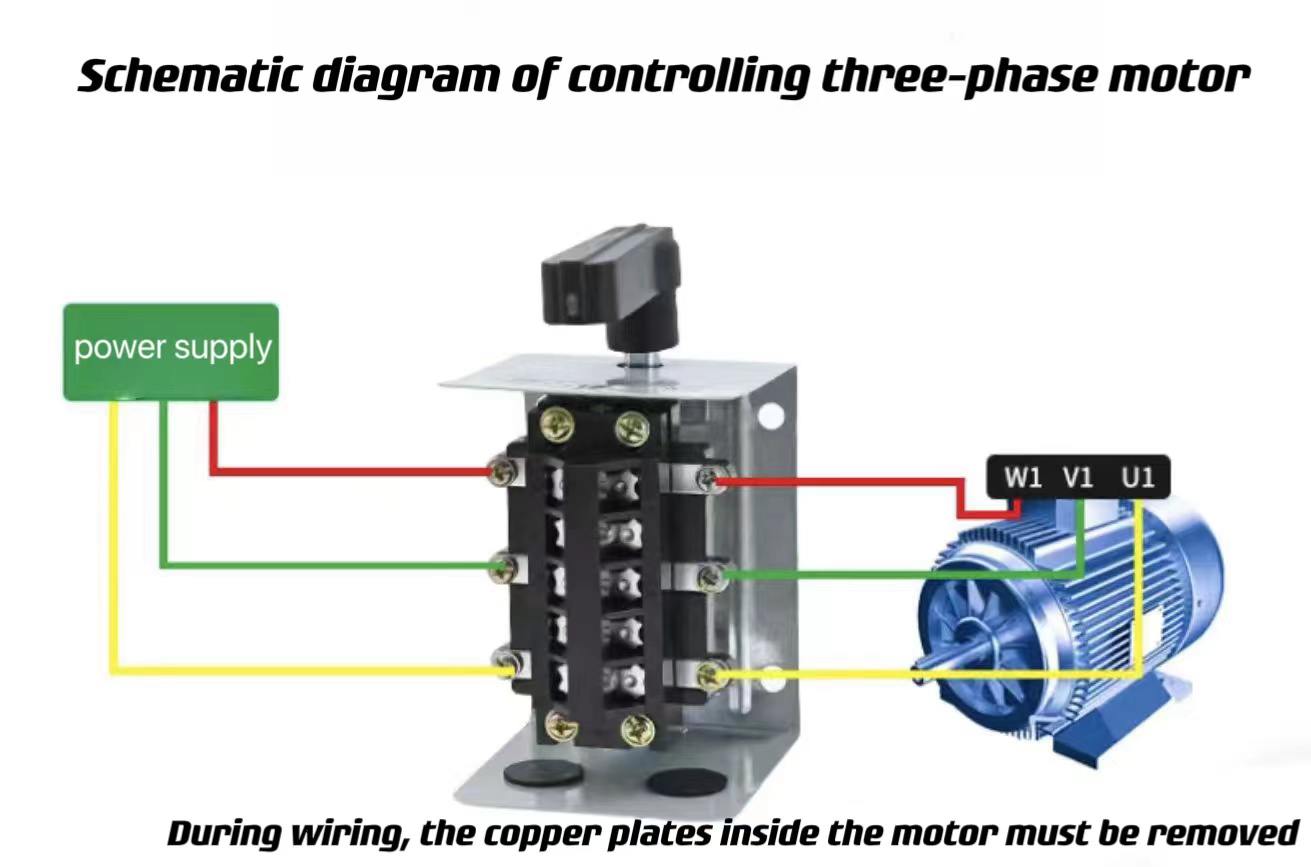

2.Using a Reversing Switch

Many industrial motors have a reversing switch that allows you to change the rotation direction by flipping a lever or pressing a button. This switch internally swaps the power leads, achieving the same effect as manually switching them.

3.Adjusting the Motor Controller

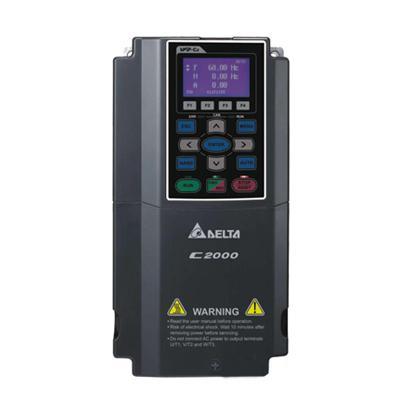

 If you're using a variable frequency drive (VFD) or a similar motor controller, you can often program it to reverse the motor's rotation direction. This is done by changing the phase sequence or polarity settings within the controller's software or interface.

Safety Consideration

Before attempting to reverse a 3-phase motor, always ensure that:

• The motor is properly isolated and disconnected from the power supply.

• You are familiar with the specific motor and its control system.

• You have the necessary safety equipment, such as gloves, eye protection, and insulated tools.

• You follow all relevant safety procedures and regulations.

Conclusion

Reversing the rotation of a 3-phase electric motor is a relatively simple task that can be achieved by swapping the power leads, using a reversing switch, or adjusting the motor controller's settings. However, it's crucial to understand the basic principle of operation and take all necessary safety measures before attempting this procedure. With the right knowledge and tools, you can easily reverse a 3-phase motor to meet your specific requirements.
