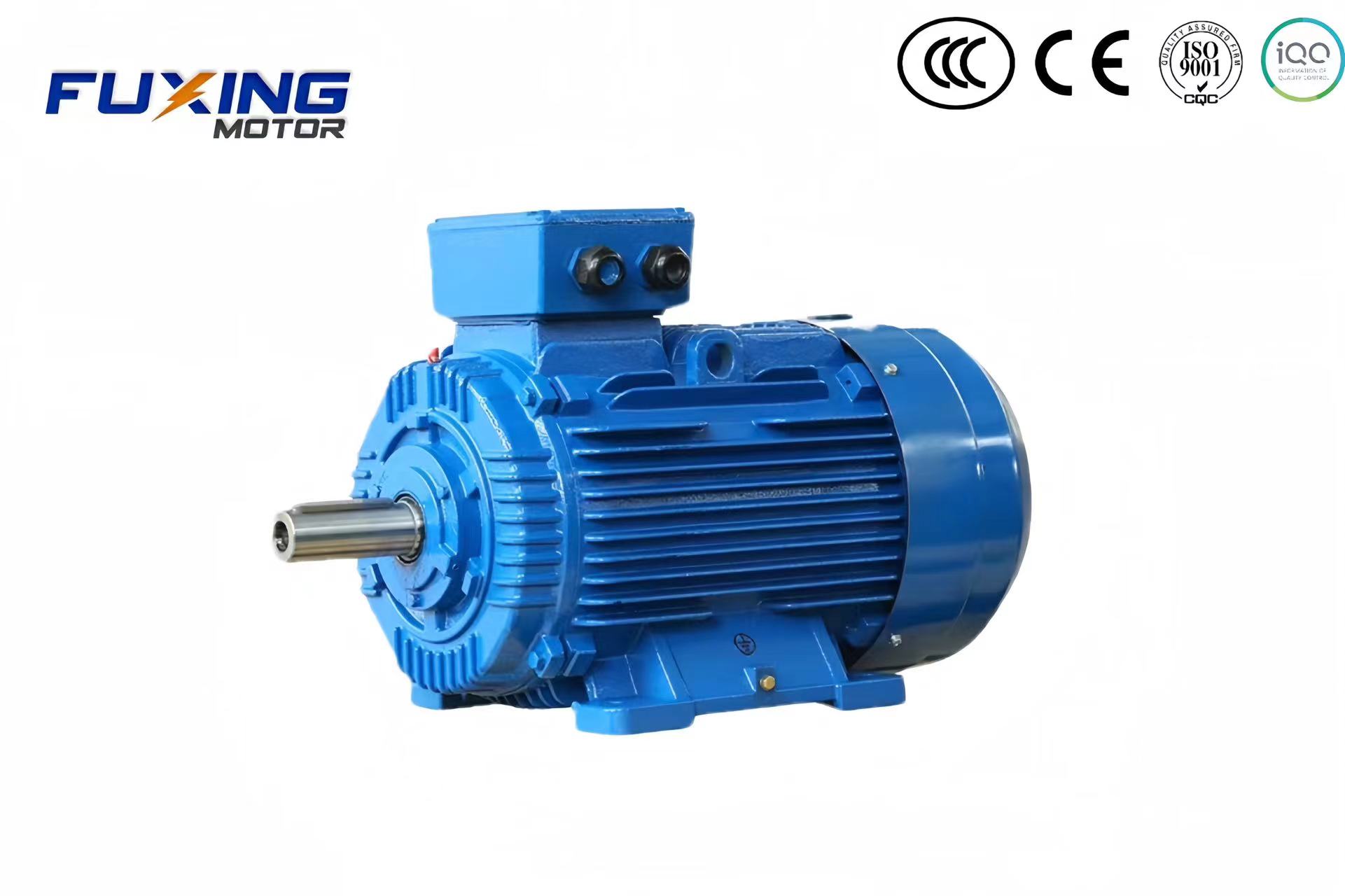

Product name：IE3 (YE3) Series 3 phase asynchronous electric motor
Frame: 63-355
Power:0.55KW-375KW（0.75HP-502.88HP）
number of poles：2.4.6.8.10P
voltage（V）：380V or other
frequency（HZ）：50HZ/60HZ
protection grade：IP55
insulation class：F
Installation Method：B3,B5,B35
Cooling:TEFC
Efficiency:IE 3
scope of application：Machinery without special requirements
Product advantages :
exquisite appearance, efficient and energy-saving, F-grade insulation, low vibration, low noise, high protection level, safe and reliable, super durable，Compared to YE2, the efficiency has increased by an average of 13%, and there is a relatively flat efficiency characteristic in the load range of 50% -100%.
operating conditions:
Power supply conditions: voltage fluctuation within ± 5%, frequency fluctuation within ± 2%. The voltage and frequency fluctuate within 5% simultaneously, and the frequency fluctuation does not exceed 2%.
Place of use: Cannot be used in environments containing flammable and explosive gases, chemically corrosive gases, or other harmful gases.
Ambient temperature: -15 ℃ ≤0≤40 ℃
Altitude: not exceeding 1000 meters
Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Technical Data:
2pole-3000rpm synchronous speed 50HZ | ||||||||||||
Motor Type | Rated Output (KW) | Rated Speed(rpm) | IFL380V(A) | IFL400V(A) | IFL415V(A) | IFL525V(A) | EFF (%) | Power Factor(COSφ) | Rated Torque (Nm.) | Noise Level LW dB(A) | Net Weight(kg) | |
IE3-80M1-2 | 0.75 | 2855 | 1.7 | 1.6 | 1.6 | 1.2 | 80.7% | 0.82 | 2.5 | 62 | 17 | |
IE3-80M2-2 | 1.1 | 2855 | 2.4 | 2.3 | 2.2 | 1.8 | 82.7% | 0.83 | 3.7 | 62 | 20 | |
IE3-90S-2 | 1.5 | 2875 | 3.2 | 3.1 | 3.0 | 2.3 | 84.2% | 0.84 | 5.0 | 67 | 24 | |
IE3-90L-2 | 2.2 | 2875 | 4.6 | 4.3 | 4.2 | 3.3 | 85.9% | 0.85 | 7.3 | 67 | 29 | |
IE3-100L-2 | 3 | 2880 | 6.0 | 5.7 | 5.5 | 4.4 | 87.1% | 0.87 | 9.9 | 74 | 42 | |
IE3-112M-2 | 4 | 2900 | 7.8 | 7.4 | 7.2 | 5.7 | 88.1% | 0.88 | 13.2 | 77 | 48 | |
IE3-13251-2 | 5.5 | 2900 | 10.6 | 10.1 | 9.7 | 7.7 | 89.2% | 0.88 | 18.1 | 79 | 70 | |
IE3-132S2-2 | 7.5 | 2900 | 14.4 | 13.7 | 13.2 | 10.4 | 90.1% | 0.88 | 24.7 | 79 | 74 | |
IE3-160M1-2 | 11 | 2940 | 20.6 | 19.6 | 18.9 | 14.9 | 91.2% | 0.89 | 35.7 | 81 | 120 | |
IE3-160M2-2 | 15 | 2940 | 27.9 | 26.5 | 25.5 | 20.2 | 91.9% | 0.89 | 48.7 | 81 | 130 | |
IE3-160L-2 | 18.5 | 2940 | 34.2 | 32.5 | 31.3 | 24.7 | 92.4% | 0.89 | 60.1 | 81 | 148 | |
IE3-180M-2 | 22 | 2955 | 40.5 | 38.5 | 37.1 | 29.3 | 92.7% | 0.89 | 71.1 | 83 | 192 | |
IE3-200L1-2 | 30 | 2965 | 54.9 | 52.1 | 50.3 | 39.7 | 93.3% | 0.89 | 96.6 | 84 | 248 | |
IE3-200L2-2 | 37 | 2965 | 67.4 | 64.0 | 61.7 | 48.8 | 93.7% | 0.89 | 119.2 | 84 | 270 | |
IE3-225M-2 | 45 | 2970 | 80.8 | 76.8 | 74.0 | 58.5 | 94.0% | 0.9 | 144.7 | 86 | 324 | |
IE3-250M-2 | 55 | 2975 | 98.5 | 93.5 | 90.2 | 71.3 | 94.3% | 0.9 | 176.6 | 89 | 438 | |
IE3-280S-2 | 75 | 2975 | 133.7 | 127.0 | 122.4 | 96.8 | 94.7% | 0.9 | 240.8 | 91 | 565 | |
IE3-280M-2 | 90 | 2975 | 159 q | 1519 | 146.4 | 1158 | 95.0% | 0.9 | 288.9 | 91 | 598 | |
IE3-315S-2 | 110 | 2980 | 195.1 | 185.3 | 178.6 | 141.2 | 95.2% | 0.9 | 352.5 | 92 | 956 | |
IE3-315M-2 | 132 | 2980 | 220.4 | 221.9 | 213.9 | 169.1 | 95.4% | 0.9 | 423.0 | 92 | 960 | |
IE3-315L1-2 | 160 | 2980 | 279.4 | 265.5 | 255.9 | 202.3 | 95.6% | 0.91 | 512.8 | 92 | 1060 | |
IE3-315L-2 | 185 | 2980 | 322.8 | 306.6 | 295.5 | 233.6 | 95.7% | 0.91 | 592.9 | 92 | 1140 | |
IE3-315L2-2 | 200 | 2980 | 348.6 | 331.1 | 319.2 | 252.3 | 95.8% | 0.91 | 640.9 | 92 | 1080 | |
IE3-355M1-2 | 220 | 2980 | 383.4 | 364.3 | 351.1 | 277.5 | 95.8% | 0.91 | 705.0 | 100 | 1560 | |
IE3-355M2-2 | 250 | 2980 | 435.7 | 413.9 | 399.0 | 315.4 | 95.8% | 0.91 | 801.2 | 100 | 1620 | |
IE3-355L1-2 | 280 | 2980 | 488.0 | 463.6 | 446.8 | 353.2 | 95.8% | 0.91 | 897.3 | 100 | 1720 | |
IE3-355L2-2 | 315 | 2980 | 549.0 | 521.5 | 502.7 | 397.4 | 95.8% | 0.91 | 1009.5 | 100 | 2017 | |
IE3-3551-2 | 355 | 2980 | 618.7 | 587.8 | 566.5 | 447.8 | 95.8% | 0.91 | 1137.6 | 104 | 2150 | |
IE3-3552-2 | 375 | 2980 | 653.6 | 620.9 | 598.5 | 473.1 | 95.8% | 0.91 | 1201.7 | 104 | 2280 | |
4pole-1500rpm synchronous speed 50HZ | ||||||||||||
Motor Type | Rated Output (KW) | Rated Speed(rpm) | IFL380V(A) | IFL400V(A) | IFL415V(A) | IFL525V(A) | EFF (%) | Power Factor(COSφ) | Rated Torque (Nm.) | Noise Level LW dB(A) | Net Weight(kg) | |
IE3-80M2-4 | 0.75 | 1400 | 1.8 | 1.7 | 1.7 | 1.3 | 82.5% | 0.75 | 5.1 | 56 | 16 | |
IE3-90S-4 | 1.1 | 1425 | 2.6 | 2.5 | 2.4 | 1.9 | 84.1% | 0.76 | 7.4 | 59 | 25 | |
IE3-90L-4 | 1.5 | 1425 | 3.5 | 3.3 | 3.2 | 2.5 | 85.3% | 0.77 | 10.1 | 59 | 31 | |
IE3-100L1-4 | 2.2 | 1440 | 4.8 | 4.5 | 4.4 | 3.4 | 86.7% | 0.81 | 14.6 | 64 | 43 | |
IE3-100L2-4 | 3 | 1440 | 6.3 | 6.0 | 5.8 | 4.6 | 87.7% | 0.82 | 19.9 | 64 | 42 | |
IE3-112M-4 | 4 | 1450 | 8.4 | 7.9 | 7.7 | 6.1 | 88.6% | 0.82 | 26.3 | 65 | 54 | |
IE3-1325-4 | 5.5 | 1455 | 11.2 | 10.7 | 10.3 | 8.1 | 89.6% | 0.83 | 36.1 | 71 | 70 | |
IE3-132M-4 | 7.5 | 1455 | 15.0 | 14.3 | 13.7 | 10.9 | 90.4% | 0.84 | 49.2 | 71 | 84 | |
IE3-160M-4 | 11 | 1465 | 21.5 | 20.4 | 19.7 | 15.6 | 91.4% | 0.85 | 71.7 | 73 | 128 | |
IE3-160L-4 | 15 | 1465 | 28.8 | 27.3 | 26.3 | 20.8 | 92.1% | 0.86 | 97.8 | 73 | 150 | |
IE3-180M-4 | 18.5 | 1470 | 35.3 | 33.5 | 32.3 | 25.5 | 92.6% | 0.86 | 120.2 | 76 | 182 | |
IE3-180L-4 | 22 | 1475 | 41.8 | 39.7 | 38.3 | 30.3 | 93.0% | 0.86 | 142.4 | 76 | 223 | |
IE3-200L-4 | 30 | 1475 | 56.6 | 53.8 | 51.9 | 41.0 | 93.6% | 0.86 | 194.2 | 76 | 300 | |
IE3-225S-4 | 37 | 1480 | 69.6 | 66.1 | 63.7 | 50.4 | 93.9% | 0.86 | 238.8 | 78 | 354 | |
IE3-225M-4 | 45 | 1480 | 84.4 | 80.2 | 77.3 | 61.1 | 94.2% | 0.86 | 290.4 | 78 | 342 | |
IE3-250M-4 | 55 | 1480 | 102.7 | 97.6 | 94.1 | 74.3 | 94.6% | 0.86 | 354.9 | 79 | 460 | |
IE3-280S-4 | 75 | 1485 | 136.3 | 129.5 | 124.8 | 98.7 | 95.0% | 0.88 | 482.3 | 80 | 581 | |
IE3-280M-4 | 90 | 1485 | 163.2 | 155.1 | 149.5 | 118.1 | 95.2% | 0.88 | 578.8 | 80 | 658 | |
IE3-315S-4 | 110 | 1485 | 196.8 | 187.0 | 180.2 | 142.5 | 95.4% | 0.89 | 707.4 | 88 | 914 | |
IE3-315M-4 | 132 | 1485 | 235.7 | 223.9 | 215.8 | 170.6 | 95.6% | 0.89 | 848.9 | 88 | 1034 | |
IE3-315L1-4 | 160 | 1485 | 285.1 | 270.9 | 261.1 | 206.4 | 95.8% | 0.89 | 1029.0 | 88 | 1078 | |
IE3-315L-4 | 185 | 1485 | 329.3 | 312.9 | 301.6 | 238.4 | 95.9% | 0.89 | 1189.7 | 88 | 1150 | |
IE3-315L2-4 | 200 | 1485 | 351.7 | 334.1 | 322.0 | 254.6 | 96.0% | 0.9 | 1286.2 | 88 | 1200 | |
IE3-355M1-4 | 220 | 1490 | 386.9 | 367.5 | 354.3 | 280.0 | 96.0% | 0.9 | 1410.1 | 95 | 1650 | |
IE3-355M2-4 | 250 | 1490 | 439.6 | 417.7 | 402.6 | 318.2 | 96.0% | 0.9 | 1602.3 | 95 | 1750 | |
IE3-355L1-4 | 280 | 1490 | 492.4 | 467.8 | 450.9 | 356.4 | 96.0% | 0.9 | 1794.6 | 95 | 1870 | |
IE3-355L2-4 | 315 | 1490 | 553.9 | 526.2 | 507.2 | 400.9 | 96.0% | 0.9 | 2019.0 | 95 | 1984 | |
IE3-3551-4 | 355 | 1490 | 638.5 | 606.5 | 584.6 | 462.1 | 96.0% | 0.9 | 2275.3 | 102 | 2375 | |
YF3-3552-4 | 375 | 1490 | 674.4 | 640.7 | 617.6 | 488.2 | 96.0% | 0.9 | 2403.5 | 102 | 2420 | |
6pole-1000rpm synchronous speed 50HZ | ||||||||||||
Motor Type | Rated Output (KW) | Rated Speed(rpm) | IFL380V(A) | IFL400V(A) | IFL415V(A) | IFL525V(A) | EFF (%) | Power Factor(COSφ) | Rated Torque (Nm.) | Noise Level LW dB(A) | Net Weight(kg) | |
IE3-90S-6 | 0.75 | 935 | 2.0 | 1.9 | 1.9 | 1.5 | 78.9% | 0.71 | 7.7 | 57 | 25 | |
IE3-90L-6 | 1.1 | 940 | 2.8 | 2.7 | 2.6 | 2.0 | 81.0% | 0.73 | 11.2 | 57 | 30 | |
IE3-100L-6 | 1.5 | 945 | 3.8 | 3.6 | 3.5 | 2.7 | 82.5% | 0.73 | 15.2 | 61 | 40 | |
IE3-112M-6 | 2.2 | 950 | 5.4 | 5.1 | 4.9 | 3.9 | 84.3% | 0.74 | 22.1 | 65 | 39 | |
IE3-132S-6 | 3 | 960 | 7.2 | 6.8 | 6.6 | 5.2 | 85.6% | 0.74 | 29.8 | 69 | 61 | |
IE3-132M1-6 | 4 | 960 | 9.5 | 9.0 | 8.7 | 6.8 | 86.8% | 0.74 | 39.8 | 69 | 70 | |
IE3-132M2-6 | 5.5 | 960 | 12.7 | 12.0 | 11.6 | 9.2 | 88.0% | 0.75 | 54.7 | 69 | 78 | |
IE3-160M-6 | 7.5 | 970 | 16.2 | 15.4 | 14.8 | 11.7 | 89.1% | 0.79 | 73.8 | 73 | 116 | |
IE3-160L-6 | 11 | 970 | 23.1 | 22.0 | 21.2 | 16.7 | 90.3% | 0.80 | 108.3 | 73 | 142 | |
IE3-180L-6 | 15 | 975 | 30.9 | 29.3 | 28.2 | 22.3 | 91.2% | 0.81 | 146.9 | 73 | 188 | |
IE3-200L1-6 | 18.5 | 975 | 37.8 | 36.0 | 34.7 | 27.4 | 91.7% | 0.81 | 181.2 | 73 | 234 | |
IE3-200L2-6 | 22 | 975 | 44.8 | 42.5 | 41.0 | 32.4 | 92.2% | 0.81 | 215.5 | 73 | 275 | |
IE3-225M-6 | 30 | 985 | 59.1 | 56.2 | 54.1 | 42.8 | 92.9% | 0.83 | 290.9 | 74 | 332 | |
IE3-250M-6 | 37 | 985 | 71.7 | 68.1 | 65.7 | 51.9 | 93.3% | 0.84 | 358.7 | 76 | 422 | |
IE3-280S-6 | 45 | 985 | 85.8 | 81.6 | 78.6 | 62.1 | 93.7% | 0.85 | 436.3 | 78 | 536 | |
IE3-280M-6 | 55 | 985 | 103.3 | 98.1 | 94.6 | 74.7 | 94.1% | 0.86 | 533.2 | 78 | 590 | |
IE3-315S-6 | 75 | 990 | 143.4 | 136.2 | 131.3 | 103.8 | 94.6% | 0.84 | 723.5 | 83 | 848 | |
IE3-315M-6 | 90 | 990 | 169.5 | 161.0 | 155.2 | 122.7 | 94.9% | 0.85 | 868.2 | 83 | 942 | |
IE3-315L1-6 | 110 | 990 | 206.8 | 196.4 | 189.3 | 149.7 | 95.1% | 0.85 | 1061.1 | 83 | 980 | |
IE3-315L2-6 | 132 | 990 | 244.5 | 232.2 | 223.8 | 176.9 | 95.4% | 0.86 | 1273.3 | 83 | 1140 | |
IE3-355M1-6 | 160 | 990 | 295.7 | 281.0 | 270.7 | 214.0 | 95.6% | 0.86 | 1543.4 | 85 | 1790 | |
IE3-355M-6 | 185 | 990 | 341.5 | 324.5 | 312.7 | 247.2 | 95.7% | 0.86 | 1784.6 | 85 | 1680 | |
IE3-355M2-6 | 200 | 990 | 364.6 | 346.4 | 333.8 | 263.9 | 95.8% | 0.87 | 1929.3 | 85 | 1945 | |
IE3-355L1-6 | 220 | 990 | 401.0 | 381.0 | 367.2 | 290.3 | 95.8% | 0.87 | 2122.2 | 85 | 1810 | |
IE3-355L2-6 | 250 | 990 | 455.7 | 433.0 | 417.3 | 330.0 | 95.8% | 0.87 | 2411.6 | 85 | 1960 | |
IE3-3551-6 | 280 | 990 | 510.4 | 485.0 | 467.4 | 369.5 | 95.8% | 0.87 | 2701.0 | 91 | 2350 | |
IE3-3552-6 | 315 | 990 | 581.0 | 551.9 | 532.0 | 420.5 | 95.8% | 0.87 | 3038.6 | 91 | 2440 | |
8pole-750rpm synchronous speed 50HZ | ||||||||||||
Motor Type | Rated Output (KW) | Rated Speed(rpm) | IFL380V(A) | IFL400V(A) | IFL415V(A) | IFL525V(A) | EFF (%) | Power Factor(COSφ) | Rated Torque (Nm.) | Noise Level LW dB(A) | Net Weight(kg) | |
IE3-100L1-8 | 0.75 | 695 | 2.3 | 2.2 | 2.1 | 1.6 | 75.0% | 0.67 | 10.3 | 59 | 40 | |
IE3-100L2-8 | 1.1 | 695 | 3.1 | 3.0 | 2.9 | 2.3 | 77.7% | 0.69 | 15.1 | 59 | 42 | |
IE3-112M-8 | 1.5 | 695 | 4.1 | 3.9 | 3.7 | 3.0 | 79.7% | 0.70 | 20.6 | 61 | 45 | |
IE3-132S-8 | 2.2 | 715 | 5.7 | 5.5 | 5.3 | 4.2 | 81.9% | 0.71 | 29.4 | 64 | 60 | |
IE3-132M-8 | 3 | 715 | 7.5 | 7.1 | 6.8 | 5.4 | 83.5% | 0.73 | 40.1 | 64 | 70 | |
IE3-160M1-8 | 4 | 725 | 9.8 | 9.3 | 9.0 | 7.1 | 84.8% | 0.73 | 52.7 | 68 | 100 | |
IE3-160L2-8 | 5.5 | 725 | 13.1 | 12.4 | 12.0 | 9.5 | 86.2% | 0.74 | 72.4 | 68 | 120 | |
IE3-160L-8 | 7.5 | 725 | 17.4 | 16.5 | 15.9 | 12.6 | 87.3% | 0.75 | 98.8 | 68 | 130 | |
IE3-180L-8 | 11 | 735 | 25.2 | 23.9 | 23.0 | 18.2 | 88.6% | 0.75 | 142.9 | 70 | 190 | |
IE3-200L-8 | 15 | 735 | 33.5 | 31.8 | 30.6 | 24.2 | 89.6% | 0.76 | 194.9 | 73 | 230 | |
IE3-225S-8 | 18.5 | 735 | 41.0 | 39.0 | 37.6 | 29.7 | 90.1% | 0.76 | 240.4 | 73 | 270 | |
IE3-225M-8 | 22 | 745 | 47.3 | 44.9 | 43.3 | 34.2 | 90.6% | 0.78 | 282.0 | 73 | 300 | |
IE3-250M-8 | 30 | 745 | 63.2 | 60.0 | 57.9 | 45.7 | 91.3% | 0.79 | 384.6 | 75 | 390 | |
IE3-280S-8 | 37 | 745 | 77.5 | 73.6 | 71.0 | 56.1 | 91.8% | 0.79 | 474.3 | 76 | 510 | |
IE3-280M-8 | 45 | 745 | 93.9 | 89.2 | 86.0 | 67.9 | 92.2% | 0.79 | 576.8 | 76 | 560 | |
IE3-315S-8 | 55 | 745 | 111.5 | 106.0 | 102.1 | 80.7 | 92.5% | 0.81 | 705.0 | 82 | 770 | |
IE3-315M-8 | 75 | 745 | 151.1 | 143.6 | 138.4 | 109.4 | 93.1% | 0.81 | 961.4 | 82 | 1000 | |
IE3-315L1-8 | 90 | 745 | 178.5 | 169.6 | 163.5 | 129.2 | 93.4% | 0.82 | 1153.7 | 82 | 1060 | |
IE3-315L2-8 | 110 | 745 | 217.5 | 206.6 | 199.2 | 157.4 | 93.7% | 0.82 | 1410.1 | 82 | 1060 | |
IE3-355M1-8 | 132 | 745 | 263.4 | 250.2 | 241.2 | 190.7 | 94.0% | 0.82 | 1692.1 | 89 | 1680 | |
IE3-355M-8 | 160 | 745 | 318.3 | 302.4 | 291.4 | 230.4 | 94.3% | 0.82 | 2051.0 | 89 | 1760 | |
IE3-355L1-8 | 185 | 745 | 368.0 | 349.6 | 337 | 266.4 | 94.3% | 0.82 | 2371.5 | 89 | 1850 | |
IE3-355L2-8 | 200 | 745 | 396.6 | 376.7 | 363.1 | 287 | 94.6% | 0.82 | 2563.8 | 89 | 1990 | |
IE3-3551-8 | 220 | 745 | 436.2 | 414.4 | 399.5 | 315.8 | 94.6% | 0.83 | 2820.1 | 89 | 2380 | |
IE3-3552-8 | 250 | 745 | 495.7 | 471 | 454 | 358.8 | 94.6% | 0.83 | 3204.7 | 89 | 2430 | |

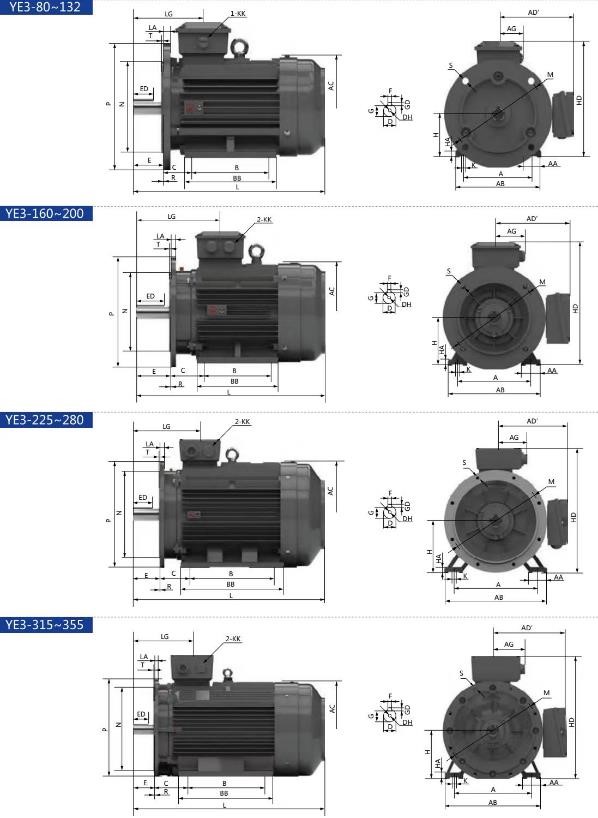

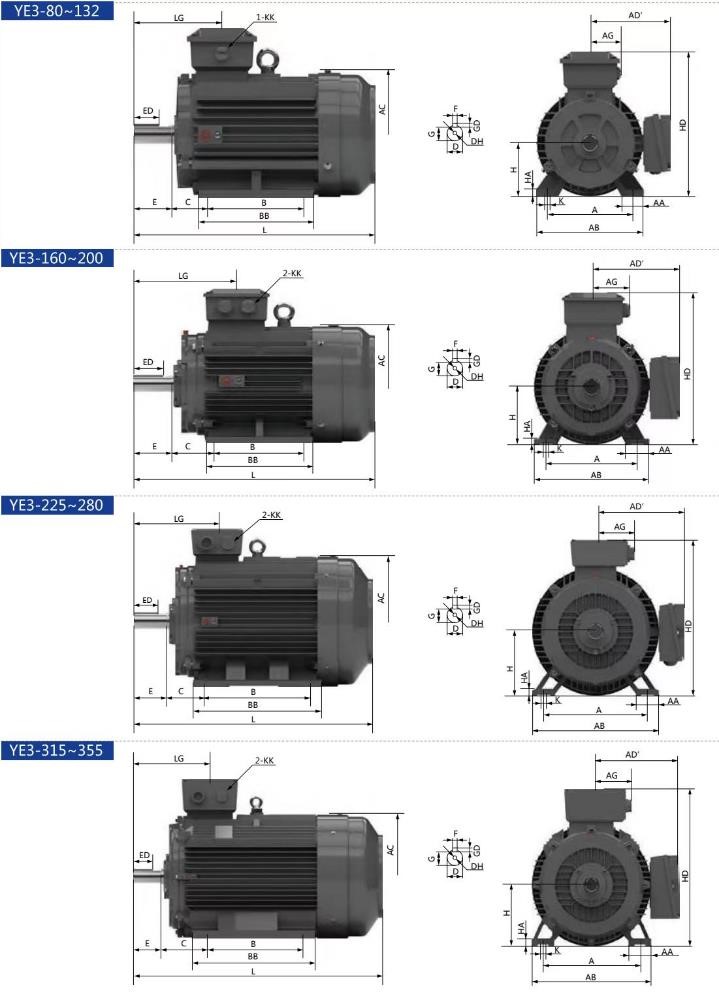

Dimensions foot mount B3:
Dimensions Foot Mount B3 | |||||||||||||||||||||||||
FRAME SIZE | POLES | A | AA | AB | AC | AD' | AG | B | BB | C | D | DH* | E | ED | F | G | GD | H | HA | HD | K | KK | L* | LG | |
80M | 2-8 | 125 | 34 | 165 | 175 | 145 | 51 | 100 | 142 | 50 | 19 | M6X16 | 40 | 22 | 6 | 15.5 | 6 | 80 | 10 | 235 | 10 | M24X1.5 | 301 | 115 | |
90S | 2-8 | 140 | 36 | 180 | 205 | 155 | 60 | 100 | 180 | 56 | 24 | M8X19 | 50 | 32 | 8 | 20 | 7 | 90 | 12.5 | 260 | 10 | M24X1.5 | 360 | 129 | |
90L | 2-8 | 140 | 36 | 180 | 205 | 155 | 60 | 125 | 210 | 56 | 24 | M8X19 | 50 | 32 | 8 | 20 | 7 | 90 | 12.5 | 260 | 10 | M24X1.5 | 390 | 129 | |
100L | 2-8 | 160 | 40 | 205 | 215 | 165 | 60 | 140 | 233 | 63 | 28 | M10X22 | 60 | 40 | 8 | 24 | 7 | 100 | 14 | 275 | 12 | M24X1.5 | 433.5 | 147 | |
112M | 2-8 | 190 | 45 | 230 | 236 | 185 | 75 | 140 | 252 | 70 | 28 | M10X22 | 60 | 40 | 8 | 24 | 7 | 112 | 14 | 307 | 12 | M30X2 | 461 | 144 | |
132S | 2-8 | 216 | 52 | 270 | 275 | 205 | 75 | 140 | 220 | 89 | 38 | M12X28 | 80 | 56 | 10 | 33 | 8 | 132 | 16 | 347 | 12 | M30X2 | 491.5 | 169 | |
132M | 2-8 | 216 | 52 | 270 | 275 | 205 | 75 | 178 | 258 | 89 | 38 | M12X28 | 80 | 56 | 10 | 33 | 8 | 132 | 16 | 347 | 12 | M30X2 | 529.5 | 169 | |
160M | 2-8 | 254 | 67 | 320 | 330 | 250 | 95 | 210 | 305 | 108 | 42 | M16X36 | 110 | 80 | 12 | 37 | 8 | 160 | 19 | 425 | 14.5 | M36X2 | 657.5 | 270 | |
160L | 2-8 | 254 | 67 | 320 | 330 | 250 | 95 | 254 | 325 | 108 | 42 | M16X36 | 110 | 80 | 12 | 37 | 8 | 160 | 19 | 425 | 14.5 | M36X2 | 679.5 | 270 | |
180M | 2-8 | 279 | 74 | 350 | 380 | 270 | 95 | 241 | 330 | 121 | 48 | M16X36 | 110 | 80 | 14 | 42.5 | 9 | 180 | 22 | 460 | 14.5 | M36X2 | 721 | 277 | |
180L | 2-8 | 279 | 74 | 350 | 380 | 270 | 95 | 279 | 370 | 121 | 48 | M16X36 | 110 | 80 | 14 | 42.5 | 9 | 180 | 22 | 460 | 14.5 | M36X2 | 769 | 277 | |
200L | 2-8 | 318 | 75 | 395 | 420 | 325 | 120 | 305 | 370 | 133 | 55 | M20X42 | 110 | 80 | 16 | 49 | 10 | 200 | 25 | 515 | 18.5 | M48X2 | 781 | 298 | |
225S | 4-8 | 356 | 80 | 436 | 465 | 335 | 120 | 286 | 355 | 149 | 60 | M20X42 | 140 | 100 | 18 | 53 | 11 | 225 | 28 | 560 | 18.5 | M48X2 | 831 | 340 | |
225M | 2 | 356 | 80 | 436 | 465 | 335 | 120 | 311 | 380 | 149 | 55 | M20X42 | 110 | 80 | 16 | 49 | 10 | 225 | 28 | 560 | 18.5 | M48X2 | 821 | 310 | |
225M | 4-8 | 356 | 80 | 436 | 465 | 335 | 120 | 311 | 380 | 149 | 60 | M20X42 | 140 | 100 | 18 | 53 | 11 | 225 | 28 | 560 | 18.5 | M48X2 | 856 | 340 | |
250M | 2 | 406 | 88 | 495 | 520 | 370 | 160 | 349 | 440 | 168 | 60 | M20X42 | 140 | 100 | 18 | 53 | 11 | 250 | 33 | 620 | 24 | M64X2 | 935 | 360 | |
250M | 4-8 | 406 | 88 | 495 | 520 | 370 | 160 | 349 | 440 | 168 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 250 | 33 | 620 | 24 | M64X2 | 941 | 360 | |
280S | 2 | 457 | 100 | 550 | 570 | 395 | 160 | 368 | 495 | 190 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 280 | 35 | 685 | 24 | M64X2 | 965 | 350 | |
280S | 4-8 | 457 | 100 | 550 | 570 | 395 | 160 | 368 | 495 | 190 | 75 | M20X42 | 140 | 100 | 20 | 67.5 | 12 | 280 | 35 | 685 | 24 | M64X2 | 969 | 350 | |
280M | 2 | 457 | 100 | 550 | 570 | 395 | 160 | 419 | 535 | 190 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 280 | 35 | 685 | 24 | M64X2 | 1005 | 350 | |
280M | 4-8 | 457 | 100 | 550 | 570 | 395 | 160 | 419 | 535 | 190 | 75 | M20X42 | 140 | 100 | 20 | 67.5 | 12 | 280 | 35 | 685 | 24 | M64X2 | 1009 | 350 | |
315S | 2 | 508 | 120 | 635 | 650 | 495 | 195 | 406 | 515 | 216 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 315 | 45 | 820 | 28 | M64X2 | 1145 | 387 | |
315M | 2 | 508 | 120 | 635 | 650 | 495 | 195 | 457 | 625 | 216 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 315 | 45 | 820 | 28 | M64X2 | 1255 | 387 | |
315L | 2 | 508 | 120 | 635 | 650 | 495 | 195 | 508 | 625 | 216 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 315 | 45 | 820 | 28 | M64X2 | 1255 | 387 | |
315S | 4-8 | 508 | 120 | 635 | 650 | 495 | 195 | 406 | 515 | 216 | 80 | M20X42 | 170 | 130 | 22 | 71 | 14 | 315 | 45 | 820 | 28 | M64X2 | 1196 | 417 | |
315M | 4-8 | 508 | 120 | 635 | 650 | 495 | 195 | 457 | 625 | 216 | 80 | M20X42 | 170 | 130 | 22 | 71 | 14 | 315 | 45 | 820 | 28 | M64X2 | 1306 | 417 | |
315L | 4-8 | 508 | 120 | 635 | 650 | 495 | 195 | 508 | 625 | 216 | 80 | M20X42 | 170 | 130 | 22 | 71 | 14 | 315 | 45 | 820 | 28 | M64X2 | 1306 | 417 | |
355M | 2 | 610 | 125 | 735 | 735 | 640 | 260 | 560 | 775 | 254 | 75 | M24X50 | 140 | 110 | 20 | 67.5 | 12 | 355 | 49 | 1000 | 28 | M72X2 | 1490 | 415 | |
355L | 2 | 610 | 125 | 735 | 735 | 640 | 260 | 630 | 775 | 254 | 75 | M24X50 | 140 | 110 | 20 | 67.5 | 12 | 355 | 49 | 1000 | 28 | M72X2 | 1490 | 415 | |
355M | 4-8 | 610 | 125 | 735 | 735 | 640 | 260 | 560 | 775 | 254 | 95 | M24X50 | 170 | 140 | 25 | 86 | 14 | 355 | 49 | 1000 | 28 | M72X2 | 1520 | 445 | |
355L | 4-8 | 610 | 125 | 735 | 735 | 640 | 260 | 630 | 775 | 254 | 95 | M24X50 | 170 | 140 | 25 | 86 | 14 | 355 | 49 | 1000 | 28 | M72X2 | 1520 | 445 | |
355L | 2 | 610 | 125 | 735 | 735 | 640 | 260 | 630 | 875 | 254 | 75 | M24X50 | 140 | 110 | 20 | 67.5 | 12 | 355 | 49 | 1000 | 28 | M72X2 | 1590 | 415 | |
355L | 4-8 | 610 | 125 | 735 | 735 | 640 | 260 | 630 | 875 | 254 | 95 | M24X50 | 170 | 140 | 25 | 86 | 14 | 355 | 49 | 1000 | 28 | M72X2 | 1620 | 445 | |
Tips: The 'DH' defaults to a non-threaded center hole and it can be machined into a threaded hole as required. The dimension of 'L with tolerance +-5 for frame 80-132,tolerance +-8 for frame 160-355.Due to the motors with frame size 355 have various powers ,the installation size is different, please consult the external outline drawing when ordering. Dimensions foot mount B35: | |||||||||||||||||||||||||
Dimensions Foot-Flange Mount B35 | |||||||||||||||||||||||||||||||
FRAME SIZE | POLES | A | AA | AB | AC | AD | AG | B | BB | C | D | DH | E | ED | F | G | GD | H | HA | HD | K | L | LA | LG | M | N | P | S | T | KK | |
80M | 2-8 | 125 | 34 | 165 | 175 | 145 | 51 | 100 | 142 | 50 | 19 | M6X16 | 40 | 22 | 6 | 15.5 | 6 | 80 | 10 | 235 | 10 | 301 | 14 | 115 | 165 | 130 | 200 | 12 | 3.5 | M24X | |
90S | 2-8 | 140 | 36 | 180 | 205 | 155 | 60 | 100 | 180 | 56 | 24 | M8X19 | 50 | 32 | 8 | 20 | 7 | 90 | 12.5 | 260 | 10 | 360 | 12 | 129 | 165 | 130 | 200 | 12 | 3.5 | M24) | |
90L | 2-8 | 140 | 36 | 180 | 205 | 155 | 60 | 125 | 210 | 56 | 24 | M8X19 | 50 | 32 | 8 | 20 | 7 | 90 | 12.5 | 260 | 10 | 390 | 12 | 129 | 165 | 130 | 200 | 12 | 3.5 | M24) | |
00L | 2-8 | 160 | 40 | 205 | 215 | 165 | 60 | 140 | 233 | 63 | 28 | M10X22 | 60 | 40 | 8 | 24 | 7 | 100 | 14 | 275 | 12 | 433.5 | 14 | 147 | 215 | 180 | 250 | 14.5 | 4 | M24X | |
112M | 2-8 | 190 | 45 | 230 | 236 | 185 | 75 | 140 | 252 | 70 | 28 | M10X22 | 60 | 40 | 8 | 24 | 7 | 112 | 14 | 307 | 12 | 461 | 12 | 144 | 215 | 180 | 250 | 14.5 | 4 | M30X2 | |
1325 | 2-8 | 216 | 52 | 270 | 275 | 205 | 75 | 140 | 220 | 89 | 38 | M12X28 | 80 | 56 | 10 | 33 | 8 | 132 | 16 | 347 | 12 | 491.5 | 14 | 169 | 265 | 230 | 300 | 14.5 | 4 | M30X2 | |
132M | 2-8 | 216 | 52 | 270 | 275 | 205 | 75 | 178 | 258 | 89 | 38 | M12X28 | 80 | 56 | 10 | 33 | 8 | 132 | 16 | 347 | 12 | 529.5 | 14 | 169 | 265 | 230 | 300 | 14.5 | 4 | M30X2 | |
160M | 2-8 | 254 | 67 | 320 | 330 | 250 | 95 | 210 | 305 | 108 | 42 | M16X36 | 110 | 80 | 12 | 37 | 8 | 160 | 19 | 425 | 14.5 | 657.5 | 15 | 270 | 300 | 250 | 350 | 18.5 | 5 | M36X2 | |
160L | 2-8 | 254 | 67 | 320 | 330 | 250 | 95 | 254 | 325 | 108 | 42 | M16X36 | 110 | 80 | 12 | 37 | 8 | 160 | 19 | 425 | 14.5 | 679.5 | 15 | 270 | 300 | 250 | 350 | 18.5 | 5 | M36X2 | |
180M | 2-8 | 279 | 74 | 350 | 380 | 270 | 95 | 241 | 330 | 121 | 48 | M16X36 | 110 | 80 | 14 | 42.5 | 9 | 180 | 22 | 460 | 14.5 | 721 | 15 | 277 | 300 | 250 | 350 | 18.5 | 5 | M36X2 | |
180L | 2-8 | 279 | 74 | 350 | 380 | 270 | 95 | 279 | 370 | 121 | 48 | M16X36 | 110 | 80 | 14 | 42.5 | 9 | 180 | 22 | 460 | 14.5 | 769 | 15 | 277 | 300 | 250 | 350 | 18.5 | 5 | M36X2 | |
200L | 2-8 | 318 | 75 | 395 | 420 | 325 | 120 | 305 | 370 | 133 | 55 | M20X42 | 110 | 80 | 16 | 49 | 10 | 200 | 25 | 515 | 18.5 | 781 | 17 | 298 | 350 | 300 | 400 | 18.5 | 5 | M48X2 | |
2255 | 4-8 | 356 | 80 | 436 | 465 | 335 | 120 | 286 | 355 | 149 | 60 | M20X42 | 140 | 100 | 18 | 53 | 11 | 225 | 28 | 560 | 18.5 | 831 | 19 | 340 | 400 | 350 | 450 | 18.5 | 5 | M48X2 | |
225M | 2 | 356 | 80 | 436 | 465 | 335 | 120 | 311 | 380 | 149 | 55 | M20X42 | 110 | 80 | 16 | 49 | 10 | 225 | 28 | 560 | 18.5 | 821 | 19 | 310 | 400 | 350 | 450 | 18.5 | 5 | M48X2 | |
225M | 4-8 | 356 | 80 | 436 | 465 | 335 | 120 | 311 | 380 | 149 | 60 | M20X42 | 140 | 100 | 18 | 53 | 11 | 225 | 28 | 560 | 18.5 | 856 | 19 | 340 | 400 | 350 | 450 | 18.5 | 5 | M48X2 | |
250M | 2 | 406 | 88 | 495 | 520 | 370 | 160 | 349 | 440 | 168 | 60 | M20X42 | 140 | 100 | 18 | 53 | 11 | 250 | 33 | 620 | 24 | 935 | 20 | 360 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | |
250M | 4-8 | 406 | 88 | 495 | 520 | 370 | 160 | 349 | 440 | 168 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 250 | 33 | 620 | 24 | 941 | 20 | 360 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | |
2805 | 2 | 457 | 100 | 550 | 570 | 395 | 160 | 368 | 495 | 190 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 280 | 35 | 685 | 24 | 965 | 22 | 350 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | |
280S | 4-8 | 457 | 100 | 550 | 570 | 395 | 160 | 368 | 495 | 190 | 75 | M20X42 | 140 | 100 | 20 | 67.5 | 12 | 280 | 35 | 685 | 24 | 969 | 22 | 350 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | |
280M | 2 | 457 | 100 | 550 | 570 | 395 | 160 | 419 | 535 | 190 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 280 | 35 | 685 | 24 | 1005 | 22 | 350 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | |
280M | 4-8 | 457 | 100 | 550 | 570 | 395 | 160 | 419 | 535 | 190 | 75 | M20X42 | 140 | 100 | 20 | 67.5 | 12 | 280 | 35 | 685 | 24 | 1009 | 22 | 350 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | |
315S | 2 | 508 | 120 | 635 | 650 | 495 | 195 | 406 | 515 | 216 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 315 | 45 | 820 | 28 | 1145 | 24 | 387 | 600 | 550 | 660 | 24 | 6 | M64X2 | |
315M | 2 | 508 | 120 | 635 | 650 | 495 | 195 | 457 | 625 | 216 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 315 | 45 | 820 | 28 | 1255 | 24 | 387 | 600 | 550 | 660 | 24 | 6 | M64X2 | |
315L | 2 | 508 | 120 | 635 | 650 | 495 | 195 | 508 | 625 | 216 | 65 | M20X42 | 140 | 100 | 18 | 58 | 11 | 315 | 45 | 820 | 28 | 1255 | 24 | 387 | 600 | 550 | 660 | 24 | 6 | M64X2 | |
3155 | 4-8 | 508 | 120 | 635 | 650 | 495 | 195 | 406 | 515 | 216 | 80 | M20X42 | 170 | 130 | 22 | 71 | 14 | 315 | 45 | 820 | 28 | 1196 | 24 | 417 | 600 | 550 | 660 | 24 | 6 | M64X2 | |
315M | 4-8 | 508 | 120 | 635 | 650 | 495 | 195 | 457 | 625 | 216 | 80 | M20X42 | 170 | 130 | 22 | 71 | 14 | 315 | 45 | 820 | 28 | 1306 | 24 | 417 | 600 | 550 | 660 | 24 | 6 | M64X2 | |
315L | 4-8 | 508 | 120 | 635 | 650 | 495 | 195 | 508 | 625 | 216 | 80 | M20X42 | 170 | 130 | 22 | 71 | 14 | 315 | 45 | 820 | 28 | 1306 | 24 | 417 | 600 | 550 | 660 | 24 | 6 | M64X2 | |
355M | 2 | 610 | 125 | 735 | 735 | 640 | 260 | 560 | 775 | 254 | 75 | M24X50 | 140 | 110 | 20 | 67.5 | 12 | 355 | 49 | 1000 | 28 | 1490 | 25 | 415 | 740 | 680 | 800 | 24 | 6 | M72X2 | |
355L | 2 | 610 | 125 | 735 | 735 | 640 | 260 | 630 | 775 | 254 | 75 | M24X50 | 140 | 110 | 20 | 67.5 | 12 | 355 | 49 | 1000 | 28 | 1490 | 25 | 415 | 740 | 680 | 800 | 24 | 6 | M72X2 | |
355M | 4-8 | 610 | 125 | 735 | 735 | 640 | 260 | 560 | 775 | 254 | 95 | M24X50 | 170 | 140 | 25 | 86 | 14 | 355 | 49 | 1000 | 28 | 1520 | 25 | 445 | 740 | 680 | 800 | 24 | 6 | M72X2 | |
355L | 4-8 | 610 | 125 | 735 | 735 | 640 | 260 | 630 | 775 | 254 | 95 | M24X50 | 170 | 140 | 25 | 86 | 14 | 355 | 49 | 1000 | 28 | 1520 | 25 | 445 | 740 | 680 | 800 | 24 | 6 | M72X2 | |
355L | 2 | 610 | 125 | 735 | 735 | 640 | 260 | 630 | 875 | 254 | 75 | M24X50 | 140 | 110 | 20 | 67.5 | 12 | 355 | 49 | 1000 | 28 | 1590 | 25 | 415 | 740 | 680 | 800 | 24 | 6 | M72X2 | |
355L | 4-8 | 610 | 125 | 735 | 735 | 640 | 260 | 630 | 875 | 254 | 95 | M24X50 | 170 | 140 | 25 | 86 | 14 | 355 | 49 | 1000 | 28 | 1620 | 25 | 445 | 740 | 680 | 800 | 24 | 6 | M72X2 | |
Tips: The 'R 'dimensions is zero. The' DH' defaults to a non-threaded center hole and it can be machined into a threaded hole as required. The dimension of t with tolerance +-5 for frame 80-132,tolerance +-8 for frame 160-355.Due to the motors with frame size 355 have various powers,the installation size is different,please consult the external outline drawing when ordering. | |||||||||||||||||||||||||||||||
Dimensions foot mount B5&V1:
Dimensions Flange Mount B5&V1 | ||||||||||||||||||||||
FRAME SIZE | POLES | AC | D | AD | AD' | AG | DH | E | ED | F | G | GD | LA | LG | M | N | P | S | T | KK | L | LM |
80M | 2-8 | 175 | 19 | 155 | 145 | 51 | M6X16 | 40 | 22 | 6 | 15.5 | 6 | 14 | 115 | 165 | 130 | 200 | 12 | 3.5 | M24X1.5 | 301 | |
905 | 2-8 | 205 | 24 | 170 | 155 | 60 | M8X19 | 50 | 32 | 8 | 20 | 7 | 12 | 129 | 165 | 130 | 200 | 12 | 3.5 | M24X1.5 | 360 | |
90L | 2-8 | 205 | 24 | 170 | 155 | 60 | M8X19 | 50 | 32 | 8 | 20 | 7 | 12 | 129 | 165 | 130 | 200 | 12 | 3.5 | M24X1.5 | 390 | |
100L | 2-8 | 215 | 28 | 175 | 165 | 60 | M10X22 | 60 | 40 | 8 | A | 7 | 14 | 147 | 215 | 180 | 250 | 14.5 | 4 | M24X1.5 | 433.5 | |
112M | 2-8 | 236 | 28 | 195 | 185 | 75 | M10X22 | 60 | 40 | 8 | 24 | 7 | 12 | 144 | 215 | 180 | 250 | 14.5 | 4 | M30X2 | 461 | |
132S | 2-8 | 275 | 38 | 215 | 205 | 75 | M12X28 | 80 | 56 | 10 | 33 | 8 | 14 | 169 | 265 | 230 | 300 | 14.5 | 4 | M30X2 | 491.5 | |
132M | 2-8 | 275 | 38 | 215 | 205 | 75 | M12X28 | 80 | 56 | 10 | 33 | 8 | 14 | 169 | 265 | 230 | 300 | 14.5 | 4 | M30X2 | 529.5 | |
160M | 2-8 | 330 | 42 | 265 | 250 | 95 | M16X36 | 110 | 80 | 12 | 37 | 8 | 15 | 270 | 300 | 250 | 350 | 18.5 | 5 | M36X2 | 657.5 | 702.5 |
160L | 2-8 | 330 | 42 | 265 | 250 | 95 | M16X36 | 110 | 80 | 12 | 37 | 8 | 15 | 270 | 300 | 250 | 350 | 18.5 | 5 | M36X2 | 679.5 | 724.5 |
180M | 2-8 | 380 | 48 | 280 | 270 | 95 | M16X36 | 110 | 80 | 14 | 42.5 | 9 | 15 | 277 | 300 | 250 | 350 | 18.5 | 5 | M36X2 | 721 | 766 |
180L | 2-8 | 380 | 48 | 280 | 270 | 95 | M16X36 | 110 | 80 | 14 | 42.5 | 9 | 15 | 277 | 300 | 250 | 350 | 18.5 | 5 | M36X2 | 769 | 814 |
200L | 2-8 | 420 | 55 | 315 | 325 | 120 | M20X42 | 110 | 80 | 16 | 49 | 10 | 17 | 300 | 350 | 300 | 400 | 18.5 | 5 | M48X2 | 781 | 856 |
225S | 4-8 | 465 | 60 | 335 | 335 | 120 | M20X42 | 140 | 100 | 18 | 53 | 11 | 19 | 340 | 400 | 350 | 450 | 18.5 | 5 | M48X2 | 831 | 906 |
225M | 2 | 465 | 55 | 335 | 335 | 120 | M20X42 | 110 | 80 | 16 | 49 | 10 | 19 | 310 | 400 | 350 | 450 | 18.5 | 5 | M48X2 | 821 | 896 |
225M | 4-8 | 465 | 60 | 335 | 335 | 120 | M20X42 | 140 | 100 | 18 | 53 | 11 | 19 | 340 | 400 | 350 | 450 | 18.5 | 5 | M48X2 | 856 | 931 |
250M | 2 | 520 | 60 | 375 | 370 | 160 | M20X42 | 140 | 100 | 18 | 53 | 11 | 20 | 360 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | 935 | 1010 |
250M | 4-8 | 520 | 65 | 375 | 370 | 160 | M20X42 | 140 | 100 | 18 | 58 | 11 | 20 | 360 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | 941 | 1016 |
280S | 2 | 570 | 65 | 395 | 400 | 160 | M20X42 | 140 | 100 | 18 | 58 | 11 | 22 | 350 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | 965 | 1050 |
2805 | 4-8 | 570 | 75 | 395 | 400 | 160 | M20X42 | 140 | 100 | 20 | 67.5 | 12 | 22 | 350 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | 969 | 1054 |
280M | 2 | 570 | 65 | 395 | 400 | 160 | M20X42 | 140 | 100 | 18 | 58 | 11 | 22 | 350 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | 1005 | 1090 |
280M | 4-8 | 570 | 75 | 395 | 400 | 160 | M20X42 | 140 | 100 | 20 | 67.5 | 12 | 22 | 350 | 500 | 450 | 550 | 18.5 | 5 | M64X2 | 1009 | 1094 |
315S | 2 | 650 | 65 | 500 | 495 | 195 | M20X42 | 140 | 100 | 18 | 58 | 11 | 24 | 387 | 600 | 550 | 660 | 24 | 6 | M64X2 | 1145 | 1230 |
315M | 2 | 650 | 65 | 500 | 495 | 195 | M20X42 | 140 | 100 | 18 | 58 | 11 | 24 | 387 | 600 | 550 | 660 | 24 | 6 | M64X2 | 1255 | 1340 |
315L | 2 | 650 | 65 | 500 | 495 | 195 | M20X42 | 140 | 100 | 18 | 58 | 11 | 24 | 387 | 600 | 550 | 660 | 24 | 6 | M64X2 | 1255 | 1340 |
3155 | 4-8 | 650 | 80 | 500 | 495 | 195 | M20X42 | 170 | 130 | 22 | 71 | 14 | 24 | 417 | 600 | 550 | 660 | 24 | 6 | M64X2 | 1196 | 1281 |
315M | 4-8 | 650 | 80 | 500 | 495 | 195 | M20X42 | 170 | 130 | 22 | 71 | 14 | 24 | 417 | 600 | 550 | 660 | 24 | 6 | M64X2 | 1306 | 1391 |
315L | 4-8 | 650 | 80 | 500 | 495 | 195 | M20X42 | 170 | 130 | 22 | 71 | 14 | 24 | 417 | 600 | 550 | 660 | 24 | 6 | M64X2 | 1306 | 1391 |
355M(V1) | 2 | 735 | 75 | 640 | 645 | 260 | M24X50 | 140 | 110 | 20 | 67.5 | 12 | 25 | 415 | 740 | 680 | 800 | 24 | 6 | M72X2 | 1490 | 1590 |
355L(V1) | 2 | 735 | 75 | 640 | 645 | 260 | M24X50 | 140 | 110 | 20 | 67.5 | 12 | 25 | 415 | 740 | 680 | 800 | 24 | 6 | M72X2 | 1490 | 1590 |
355M(V¹ | 4-8 | 735 | 95 | 640 | 645 | 260 | M24X50 | 170 | 140 | 25 | 86 | 14 | 25 | 445 | 740 | 680 | 800 | 24 | 6 | M72X2 | 1520 | 1620 |
355L(V1 | 4-8 | 735 | 95 | 640 | 645 | 260 | M24X50 | 170 | 140 | 25 | 86 | 14 | 25 | 445 | 740 | 680 | 800 | 24 | 6 | M72X2 | 1520 | 1620 |
355L | 2 | 735 | 75 | 640 | 645 | 260 | M24X50 | 140 | 110 | 20 | 67.5 | 12 | 25 | 415 | 740 | 680 | 800 | 24 | 6 | M72X2 | 1590 | 1690 |
355L | 4-8 | 735 | 95 | 640 | 645 | 260 | M24X50 | 170 | 140 | 25 | 86 | 14 | 25 | 445 | 740 | 680 | 800 | 24 | 6 | M72X2 | 1620 | 1720 |
Tips: The 'R 'dimensions is zero. The DH' defaults to a non-threaded center hole and it can be machined into a threaded hole as required. The dimension of 'L and LM' with tolerance +-5 for frame 80-132,tolerance +-8 for frame 160-355.Due to the motors with frame size 355 have various powers ,the installation size is different, please consult the external outline drawing when ordering. | ||||||||||||||||||||||
