YVF2 (YVP) series variable frequency speed regulation motor

Product name：YVF2 (YVP) series variable frequency speed regulation motor

Frame: 63-355

Power:0.55KW-375KW（0.75HP-502.88HP）

voltage（V）：380V or other

frequency（HZ）：2-pole frequency conversion range (3) 5-60, 70100HZ4, 6, 8, 10 pole frequency conversion range (3) 5-100HZ

protection grade：IP55

insulation class：F

Installation Method：B3,B5,B35

Cooling: Independent axial flow fan（IC416）

Efficiency:IE 3

scope of application：Suitable for machinery, fans, pumps, conveyor automation equipment and machine tools in industries such as metallurgy, chemical engineering, textiles, pharmaceuticals, printing, packaging, food, etc

Product advantages :

The stepless speed regulation has a wide range of speed regulation, good system speed regulation performance, and significant energy-saving effect. It adopts insulation materials that are resistant to high-frequency pulse voltage shocks, and independent fans are used for forced ventilation and cooling.

operating conditions:

Power supply conditions: voltage fluctuation within ± 5%, frequency fluctuation within ± 2%. The voltage and frequency fluctuate within 5% simultaneously, and the frequency fluctuation does not exceed 2%.

Place of use: Cannot be used in environments containing flammable and explosive gases, chemically corrosive gases, or other harmful gases.

Ambient temperature: -15 ℃ ≤0≤40 ℃

Altitude: not exceeding 1000 meters

Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.

Technical Data :

2pole-3000rpm synchronous speed 50HZ
Type		Rated Power(KW)		Rated Current(A)		Rated Torque(N-m)		Maximum Torque Rated Torque		Rated Speed(r/min)		Weight（kg）
												IC416		IC411
YVF2-80M1-2		0.75		1.9		2.5		2.3		2855		19		17
YVF2-80M2-2		1.1		2.7		3.7		2.3		2855		21		19
YVF2-90S-2		1.5		3.5		5.0		2.3		2875		22		20
YVF2-90L-2		2.2		4.9		7.3		2.3		2875		27		25
YVF2-100L-2		3		6.4		9.9		2.3		2880		37		35
YVF2-112M-2		4		8.3		13.2		2.3		2900		44		40
YVF2-132S1-2		5.5		11.2		18		2.3		2900		69		60
YVF2-132S2-2		7.5		14.9		25		2.3		2900		74		65
YVF2-160M1-2		11		21.4		36		2.3		2940		122		110
YVF2-160M2-2		15		28.9		49		2.3		2940		132		120
YVF2-160L-2		18.5		35.4		60		2.3		2940		155		135
YVF2-180M-2		22		41.8		71		2.3		2955		190		170
YVF2-200L1-2		30		56.5		97		2.3		2965		255		230
YVF2-200L2-2		37		69.3		119		2.3		2965		270		240
YVF2-225M-2		45		83.8		145		2.3		2970		330		300
YVF2-250M-2		55		101.9		177		2.3		2975		430		400
YVF2-280S-2		75		138.1		241		2.3		2975		555		520
YVF2-280M-2		90		165.2		289		2.3		2975		610		575
YVF2-3155-2		110		199		353		2.2		2980		930		890
YVF2-315M-2		132		238.3		423		2.2		2980		1010		970
YVF2-315L1-2		160		284.8		513		2.2		2980		1110		1070
YVF2-315L2-2		200		355.2		641		2.2		2980		1170		1130
YVF2-355M-2		250		444.1		801		2.2		2980		1660		1620
YVF2-355L-2		315		559.5		1010		2.2		2980		1870		1830
4pole-1500rpm synchronous speed 50HZ
Type		Rated Power(KW)		Rated Current(A)		Rated Torque(N-m)		Maximum Torque Rated Torque		Rated Speed(r/min)		Weight（kg）
												IC416		IC411
YVF2-80M1-4		0.55		1.6		3.8		2.3		1400		16		14
YVF2-80M2-4		0.75		2.1		5.1		2.3		1400		18		16
YVF2-90S-4		1.1		2.9		7.4		2.3		1425		20		18
YVF2-90L-4		1.5		3.8		10.1		2.3		1425		28		26
YVF2-100L1-4		2.2		5.2		14.6		2.3		1440		37		35
YVF2-100L2-4		3		6.9		19.9		2.3		1440		42		40
YVF2-112M-4		4		9.0		26.3		2.3		1450		49		45
YVF2-1325-4		5.5		12.0		36		2.3		1455		74		65
YVF2-132M-4		7.5		16.0		49		2.3		1455		84		75
YVF2-160M-4		11		23.0		72		2.3		1465		127		115
YVF2-160L-4		15		30.6		98		2.3		1465		142		130
YVF2-180M-4		18.5		37.0		120		2.3		1470		195		175
YVF2-180L-4		22		43.7		142		2.3		1475		220		200
YVF2-200L-4		30		59.1		194		2.3		1475		275		250
YVF2-225S-4		37		71.7		239		2.3		1480		325		295
YVF2-225M-4		45		86.7		290		2.3		1480		355		325
YVF2-250M-4		55		105.5		355		2.3		1480		450		420
YVF2-280S-4		75		141.3		482		2.3		1485		570		535
YVF2-280M-4		90		167.1		579		2.3		1485		650		615
YVF2-3155-4		110		201.3		707		2.2		1485		890		850
YVF2-315M-4		132		241.0		849		2.2		1485		980		940
YVF2-315L1-4		160		288.0		1029		2.2		1485		1060		1020
YVF2-315L2-4		200		359.2		1286		2.2		1485		1200		1160
YVF2-355M-4		250		449.0		1602		2.2		1490		1700		1660
YVF2-355L-4		315		565.7		2019		2.2		1490		1900		1860
6pole-1000rpm synchronous speed 50HZ
Type		Rated Power(KW)		Rated Current(A)		Rated Torque(N-m)		Maximum Torque Rated Torque		Rated Speed(r/min)		Weight（kg）
												IC416		IC411
YVF2-90S-6		0.75		2.3		7.7		2.1		935		23		21
YVF2-90L-6		1.1		3.2		11.2		2.1		940		26		24
YVF2-100L-6		1.5		4.2		15.2		2.1		945		37		35
YVF2-112M-6		2.2		6.0		22.1		2.1		950		42		40
YVF2-132S-6		3		7.9		30		2.1		960		60		56
YVF2-132M1-6		4		10.1		40		2.1		960		75		66
YVF2-132M2-6		5.5		13.4		55		2.1		960		85		76
YVF2-160M-6		7.5		17.2		74		2.1		970		122		110
YVF2-160L-6		11		24.5		108		2.1		970		146		13
YVF2-180L-6		15		31.7		147		2.1		975		196		17t
YVF2-200L1-6		18.5		39.7		181		2.1		975		248		223
YVF2-200L2-6		22		46.3		216		2.1		975		264		234
YVF2-225M-6		30		61.6		291		2.1		985		315		285
YVF2-250M-6		37		74.6		359		2.1		985		410		380
YVF2-280S-6		45		88.0		436		2		985		495		460
YVF2-280M-6		55		105.7		533		2		985		545		510
YVF2-315S-6		75		146.5		724		2		990		800		760
YVF2-315M-6		90		173.2		868		2		990		960		920
YVF2-315L1-6		110		210.7		1061		2		990		1050		1010
YVF2-315L2-6		132		249.4		1273		2		990		1150		1110
YVF2-355M1-6		160		301.4		1543		2.2		990		1600		1560
YVF2-355M2-6		200		375.9		1929		2.2		990		1720		1680
YVF2-355L-6		250		469.9		2412		2.2		990		1850		1810
8pole-750rpm synchronous speed 50HZ
Type	Rated Power(KW)		Rated Current(A)		Rated Torque(N-m)		Maximum Torque Rated Torque		Rated Speed(r/min)		Weight（kg）
											IC416		IC411
YVF2-100L1-8	0.75		2.4		10.4		2.2		690		30		28
YVF2-100L2-8	1.1		3.4		15.2		2.4		690		35		33
YVF2-112M-8	1.5		4.4		20.8		2.6		690		49		45
YVF2-1325-8	2.2		6.0		30		2.5		710		60		51
YVF2-132M-8	3		7.8		40		2.4		710		70		61
YVF2-160M1-8	4		10.3		53		2.5		720		101		89
YVF2-160M2-8	5.5		13.6		73		2.4		720		119		107
YVF2-160L-8	7.5		17.8		100		2.3		720		132		120
YVF2-180L-8	11		25.5		144		2.5		730		178		158
YVF2-200L-8	15		34.1		196		2.4		730		253		228
YVF2-225S-8	18.5		41.1		242		2.6		730		288		258
YVF2-225M-8	22		47.4		284		2.4		740		312		282
YVF2-250M-8	30		63.4		387		2.5		740		397		367
YVF2-280S-8	37		77.8		478		2.7		740		503		468
YVF2-280M-8	45		94.1		581		2.8		740		550		515
YVF2-315S-8	55		111.2		710		2.5		740		792		752
YVF2-315M-8	75		150.5		968		2.8		740		910		870
YVF2-315L1-8	90		177.8		1162		2.9		740		1016		976
YVF2-315L2-8	110		216.8		1420		2.8		740		1136		1096
YVF2-355M1-8	132		261.0		1704		2.22		740		1596		1556
YVF2-355M2-8	160		314.7		2066		2.3		740		1744		1704
YVF2-355L-8	200		387.4		2582		2.33		740		2029		1989

Dimensions Foot Mount B3:

YVF2 (YVP) series variable frequency speed regulation motor

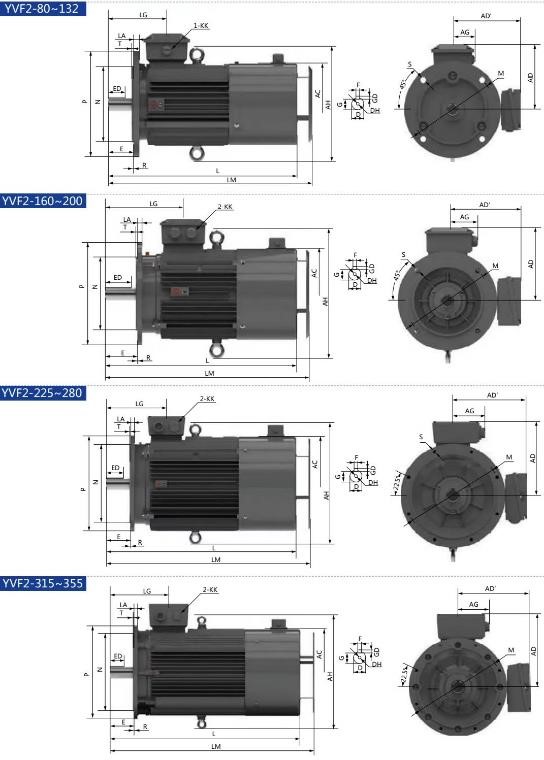

Dimensions Foot Mount B3
FRAME SIZE	POLES	A	AA	AB	AC	AD	AG	B	BB	C	D	DH	E	ED	F	G	GD	H	HA	HD	K	KK	L IC411IC416		LG
80M	2-8	125	34	160	175	140	51	100	130	50	19	M6X16	40	22	6	15.5	6	80	10	230	10	M24X1.5	295	344	106
90S	2-8	140	36	180	190	150	60	100	135	56	24	M8X19	50	32	8	20	7	90	12.5	255	10	M24X1.5	318	398	124
90L	2-8	140	36	180	190	150	60	125	160	56	24	M8X19	50	32	8	20	7	90	12.5	255	10	M24X1.5	343	423	124
100L	2-8	160	40	200	215	160	60	140	182	63	28	M10X22	60	40	8	24	7	100	14	270	12	M24X1.5	381	452.5	140
112M	2-8	190	45	230	236	185	75	140	195	70	28	M10X22	60	40	8	24	7	112	14	310	12	M30X2	399	465	145
32S	2-8	216	52	265	275	205	75	140	205	89	38	M12X28	80	56	10	33	8	132	16	350	12	M30X2	474	523	169
32M	2-8	216	52	265	275	205	75	178	245	89	38	M12X28	80	56	10	33	8	132	16	350	12	M30X2	512	563	169
160M	2-8	254	65	320	330	250	95	210	260	108	42	M16X36	110	80	12	37	8	160	19	425	14.5	M36X2	610	660	270
160L	2-8	254	65	320	330	250	95	254	305	108	42	M16X36	110	80	12	37	8	160	19	425	14.5	M36X2	655	705	270
180M	2-8	279	74	350	380	270	95	241	297	121	48	M16X36	110	80	14	42.5	9	180	22	460	14.5	M36X2	671	722	277
80L	2-8	279	74	350	380	270	95	279	335	121	48	M16X36	110	80	14	42.5	9	180	22	460	14.5	M36X2	709	760	277
200L	2-8	318	75	395	420	325	120	305	370	133	55	M20X42	110	80	16	49	10	200	25	515	18.5	M48X2	762	847	298
2255	4-8	356	80	436	465	335	120	286	355	149	60	M20X42	140	100	18	53	11	225	28	560	18.5	M48X2	815	892	340
225M	2	356	80	436	465	335	120	311	380	149	55	M20X42	110	80	16	49	10	225	28	560	18.5	M48X2	810	887	310
225M	4-8	356	80	436	465	335	120	311	380	149	60	M20X42	140	100	18	53	11	225	28	560	18.5	M48X2	840	917	340
250M	2	406	88	495	520	370	160	349	440	168	60	M20X42	140	100	18	53	11	250	33	620	24	M64X2	925	1010	353
250M	4-8	406	88	495	520	370	160	349	440	168	65	M20X42	140	100	18	58	11	250	33	620	24	M64X2	925	1010	353
280S	2	457	100	550	570	400	160	368	495	190	65	M20X42	140	100	18	58	11	280	35	685	24	M64X2	960	1050	350
280S	4-8	457	100	550	570	400	160	368	495	190	75	M20X42	140	100	20	67.5	12	280	35	685	24	M64X2	975	1065	350
280M	2	457	100	550	570	400	160	419	535	190	65	M20X42	140	100	18	58	11	280	35	685	24	M64X2	1000	1090	350
280M	4-8	457	100	550	570	400	160	419	535	190	75	M20X42	140	100	20	67.5	12	280	35	685	24	M64X2	1010	1105	350
315S	2	508	120	630	650	495	195	406	515	216	65	M20X42	140	100	18	58	11	315	45	820	28	M64X2	1145	1220	387
315M	2	508	120	630	650	495	195	457	625	216	65	M20X42	140	100	18	58	11	315	45	820	28	M64X2	1255	1330	387
315L	2	508	120	630	650	495	195	508	625	216	65	M20X42	140	100	18	58	11	315	45	820	28	M64X2	1255	1330	387
3155	4-8	508	120	630	650	495	195	406	515	216	80	M20X42	170	130	22	71	14	315	45	820	28	M64X2	1190	1250	417
315M	4-8	508	120	630	650	495	195	457	625	216	80	M20X42	170	130	22	71	14	315	45	820	28	M64X2	1300	1360	417
315L	4-8	508	120	630	650	495	195	508	625	216	80	M20X42	170	130	22	71	14	315	45	820	28	M64X2	1300	1360	417
355M	2	610	125	735	735	640	330	560	775	254	75	M24X50	140	110	20	67.5	12	355	49	1000	28	M72X2	1500	1670	420
355L	2	610	125	735	735	640	330	630	775	254	75	M24X50	140	110	20	67.5	12	355	49	1000	28	M72X2	1500	1670	420
355M	4-8	610	125	735	735	640	330	560	775	254	95	M24X50	170	140	25	86	14	355	49	1000	28	M72X2	1530	1700	450
355L	4-8	610	125	735	735	640	330	630	775	254	95	M24X50	170	140	25	86	14	355	49	1000	28	M72X2	1530	1700	450
TIps ：The 'DH'defaults to a non-threaded center hole and it can be machined into a threaded hole as required.The dimension of 'L'with tolerance +-5 for frame 80-132,tolerance +-8 for frame 160-355.Due to the motors with frame size 355 have various powers,the installation size is different,please consult the external outline drawing when ordering.

Dimensions Foot Mount B35:

YVF2 (YVP) series variable frequency speed regulation motor

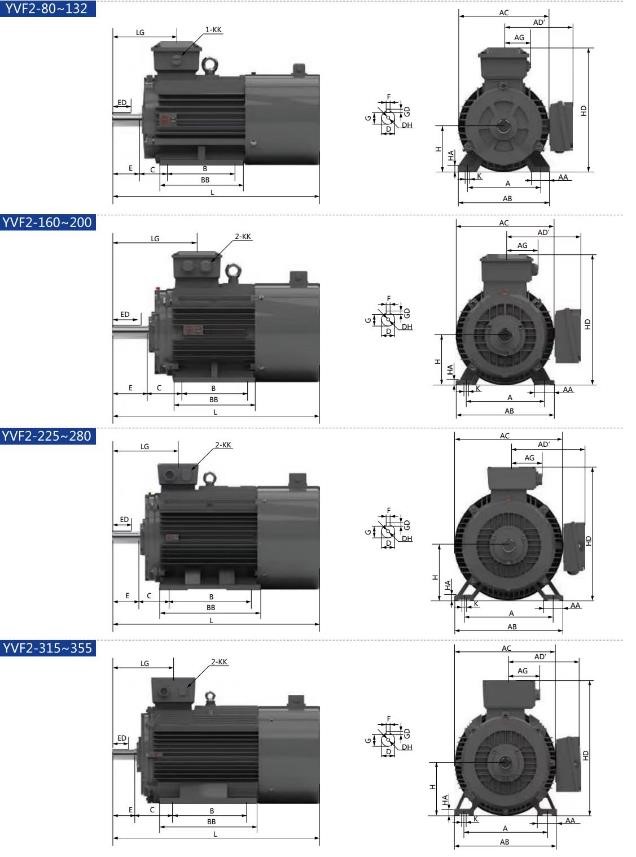

Dimensions Foot-Flange Mount B35
FRAME SIZE	POLES	A	AA	AB	AC	AD	AG	B	BB	C	D	DH	E	ED	F	G	GD	H	HA	HD	K	KK	L		LG	LA	M	N	P	S	T
FRAME SIZE	POLES	A	AA	AB	AC	AD	AG	B	BB	C	D	DH	E	ED	F	G	GD	H	HA	HD	K	KK	IC411	IC416	LG	LA	M	N	P	S	T
80M	2-8	125	34	160	175	140	51	100	130	50	19	M6X16	40	22	6	15.5	6	80	10	230	10	M24X1.5	295	344	106	12	165	130	200	12	3.5
90S	2-8	140	36	180	190	150	60	100	135	56	24	M8X19	50	32	8	20		90	12.5	255	10	M24X1.5	318	398	124	12	165	130	200	12	3.5
90L	2-8	140	36	180	190	150	60	125	160	56	24	M8X19	50	32	8	20	7	90	12.5	255	10	M24X1.5	343	423	124	12	165	130	200	12	3.5
100L	2-8	160	40	200	215	160	60	140	182	63	28	M10X22	60	40	8	24	7	100	14	270	12	M24X1.5	381	452.5	140	14	215	180	250	14.5	4
112M	2-8	190	45	230	236	185	75	140	195	70	28	M10X22	60	40	8	24	7	112	14	310	12	M30X2	399	465	145	14	215	180	250	14.5	4
1325	2-8	216	52	265	275	205	75	140	205	89	38	M12X28	80	56	10	33	8	132	16	350	12	M30X2	474	523	169	14	265	230	300	14.5	4
132M	2-8	216	52	265	275	205	75	178	245	89	38	M12X28	80	56	10	33	8	132	16	350	12	M30X2	512	563	169	14	265	230	300	14.5	4
160M	2-8	254	65	320	330	250	95	210	260	108	42	M16X36	110	80	12	37	8	160	19	425	14.5	M36X2	610	660	270	15	300	250	350	18.5	5
160L	2-8	254	65	320	330	250	95	254	305	108	42	M16X36	110	80	12	37	8	160	19	425	14.5	M36X2	655	705	270	15	300	250	350	18.5	5
180M	2-8	279	74	350	380	270	95	241	297	121	48	M16X36	110	80	14	42.5	9	180	22	460	14.5	M36X2	671	722	277	15	300	250	350	18.5	5
180L	2-8	279	74	350	380	270	95	279	335	121	48	M16X36	110	80	14	42.5	9	180	22	460	14.5	M36X2	709	760	277	15	300	250	350	18.5	5
200L	2-8	318	75	395	420	325	120	305	370	133	55	M20X42	110	80	16	49	10	200	25	515	18.5	M48X2	762	847	298	17	350	300	400	18.5	5
225S	4-8	356	80	436	465	335	120	286	355	49	60	M20X42	140	100	18	53	11	225	28	560	18.5	M48X2	815	892	340	19	400	350	450	18.5	5
225M	2	356	80	436	465	335	120	311	380	149	55	M20X42	110	80	16	49	10	225	28	560	18.5	M48X2	810	887	310	19	400	350	450	18.5	5
225M	4-8	356	80	436	465	335	120	311	380	149	60	M20X42	140	100	18	53	11	225	28	560	18.5	M48X2	840	917	340	19	400	350	450	18.5	5
250M	2	406	88	495	520	370	160	349	440	168	60	M20X42	140	100	18	53	11	250	33	620	24	M64X2	925	1010	353	20	500	450	550	18.5	5
250M	4-8	406	88	495	520	370	160	349	440	168	65	M20X42	140	100	18	58	11	250	33	620	24	M64X2	925	1010	353	20	500	450	550	18.5	5
280S	2	457	100	550	570	400	160	368	495	190	65	M20X42	140	100	18	58	11	280	35	685	24	M64X2	960	1050	350	22	500	450	550	18.5	5
280S	4-8	457	100	550	570	400	160	368	495	190	75	M20X42	140	100	20	67.5	12	280	35	685	24	M64X2	975	1065	350	22	500	450	550	18.5	5
280M	2	457	00	550	570	400	160	419	535	90	65	M20X42	140	100	18	58	11	280	35	685	24	M64X2	1000	1090	350	22	500	450	550	18.5	5
280M	4-8	457	100	550	570	400	160	419	535	190	75	M20X42	140	100	20	67.5	12	280	35	685	24	M64X2	1010	1105	350	22	500	450	550	18.5	5
315S	2	508	120	630	650	495	195	406	515	216	65	M20X42	140	100	18	58	11	315	45	820	28	M64X2	1145	1220	387	24	600	550	660	24	6
315M	2	508	120	630	650	495	195	457	625	216	65	M20X42	140	100	18	58	11	315	45	820	28	M64X2	1255	1330	387	24	600	550	660	24	6
315L	2	508	120	630	650	495	195	508	625	216	65	M20X42	140	100	18	58	11	315	45	820	28	M64X2	1255	1330	387	24	600	550	660	24	6
315S	4-8	508	120	630	650	495	195	406	515	216	80	M20X42	170	130	22	71	14	315	45	820	28	M64X2	1190	1250	417	24	600	550	660	24	6
315M	4-8	508	120	630	650	495	195	457	625	216	80	M20X42	170	130	22	71	14	315	45	820	28	M64X2	1300	1360	417	24	600	550	660	24	6
315L	4-8	508	120	630	650	495	195	508	625	216	80	M20X42	170	130	22	71	14	315	45	820	28	M64X2	1300	1360	417	24	600	550	660	24	6
355M	2	610	125	735	735	640	330	560	775	254	75	M24X50	140	110	20	67.5	12	355	49	1000	28	M72X2	1500	1670	420	25	740	680	800	24	6
355L	2	610	125	735	735	640	330	630	775	254	75	M24X50	140	110	20	67.5	12	355	49	1000	28	M72X2	1500	1670	420	25	740	680	800	24	6
355M	4-8	610	125	735	735	640	330	560	775	254	95	M24X50	170	140	25	86	14	355	49	1000	28	M72X2	1530	1700	450	25	740	680	800	24	6
355L	4-8	610	125	735	735	640	330	630	775	254	95	M24X50	170	140	25	86	14	355	49	1000	28	M72X2	1530	1700	450	25	740	680	800	24	6
TIPS：The'R’dimensions is zero.The DH'defaults to a non-threaded center hole and it can be machined into a threaded hole as required.The dimension of L and LM'with tolerance +-5 for frame 80-132,tolerance +-8 for frame 160-355.Due to the motors with frame size 355 have various powers,the installation size is different,please consult the external outline drawing when ordering.

Dimensions Foot Mount B5&V1:

YVF2 (YVP) series variable frequency speed regulation motor

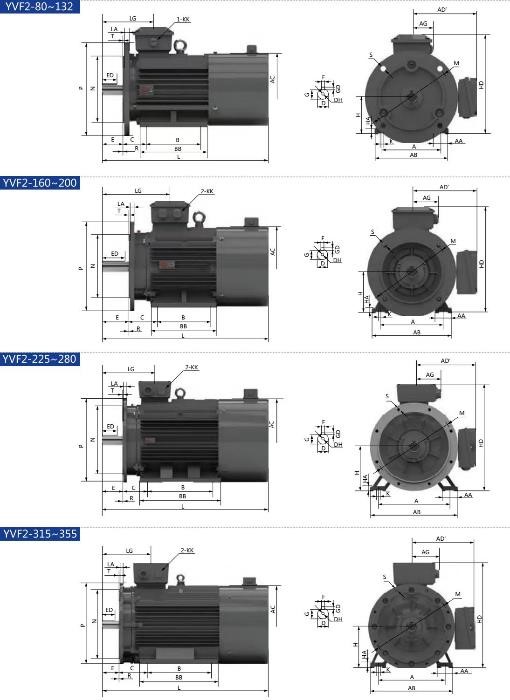

Dimensions Flange Mount B5&V1
FRAME SIZE	POLES	AC	AD	AD	AG	D	DH	E	ED	F	G	GD	KK	L		LG	LA	M	N	P	S	T
FRAME SIZE	POLES	AC	AD	AD	AG	D	DH	E	ED	F	G	GD	KK	IC411	IC416	LG	LA	M	N	P	S	T
80M	2-8	175	150	140	51	19	M6X16	40	22	6	15.5	6	M24X1.5	295	344	106	12	165	130	200	12	3.5
90S	2-8	190	165	150	60	24	M8X19	50	32	8	20	7	M24X1.5	318	398	124	12	165	130	200	12	3.5
90L	2-8	190	165	150	60	24	M8X19	50	32	8	20	7	M24X1.5	343	423	124	12	165	130	200	12	3.5
100L	2-8	215	170	160	60	28	M10X22	60	40	8	24	7	M24X1.5	381	452.5	140	14	215	180	250	14.5	4
112M	2-8	236	195	185	75	28	M10X22	60	40	8	24	7	M30X2	399	465	145	14	215	180	250	14.5	4
1325	2-8	275	215	205	75	38	M12X28	80	56	10	33	8	M30X2	474	523	169	14	265	230	300	14.5	4
132M	2-8	275	215	205	75	38	M12X28	80	56	10	33	8	M30X2	512	563	169	14	265	230	300	14.5	4
160M	2-8	330	265	250	95	42	M16X36	110	80	12	37	8	M36X2	610	660	270	15	300	250	350	18.5	5
160L	2-8	330	265	250	95	42	M16X36	110	80	12	37	8	M36X2	655	705	270	15	300	250	350	18.5	5
180M	2-8	380	280	270	95	48	M16X36	110	80	14	42.5	9	M36X2	671	722	277	15	300	250	350	18.5	5
180L	2-8	380	280	270	95	48	M16X36	110	80	14	42.5	9	M36X2	709	760	277	15	300	250	350	18.5	5
200L	2-8	420	315	325	120	55	M20X42	110	80	16	49	10	M48X2	762	847	298	17	350	300	400	18.5	5
2255	4-8	465	335	335	120	60	M20X42	140	100	18	53	11	M48X2	815	892	340	19	400	350	450	18.5	5
225M	2	465	335	335	120	55	M20X42	110	80	16	49	10	M48X2	810	887	310	19	400	350	450	18.5	5
225M	4-8	465	335	335	120	60	M20X42	140	100	18	53	11	M48X2	840	917	340	19	400	350	450	18.5	5
250M	2	520	375	370	160	60	M20X42	140	100	18	53	11	M64X2	925	1010	353	20	500	450	550	18.5	5
250M	4-8	520	375	370	160	65	M20X42	140	100	18	58	11	M64X2	925	1010	353	20	500	450	550	18.5	5
280S	2	570	395	400	160	65	M20X42	140	100	18	58	11	M64X2	960	1050	350	22	500	450	550	18.5	5
2805	4-8	570	395	400	160	75	M20X42	140	100	20	67.5	12	M64X2	975	1065	350	22	500	450	550	18.5	5
280M	2	570	395	400	160	65	M20X42	140	100	18	58	11	M64X2	1000	1090	350	22	500	450	550	18.5	5
280M	4-8	570	395	400	160	75	M20X42	140	100	20	67.5	12	M64X2	1010	1105	350	22	500	450	550	18.5	5
3155	2	650	500	495	195	65	M20X42	140	100	18	58	11	M64X2	1145	1220	387	24	600	550	660	24	6
315M	2	650	500	495	195	65	M20X42	140	100	18	58	11	M64X2	1255	1330	387	24	600	550	660	24	6
315L	2	650	500	495	195	65	M20X42	140	100	18	58	11	M64X2	1255	1330	387	24	600	550	660	24	6
3155	4-8	650	500	495	195	80	M20X42	170	130	22	71	14	M64X2	1190	1250	417	24	600	550	660	24	6
315M	4-8	650	500	495	195	80	M20X42	170	130	22	71	14	M64X2	1300	1360	417	24	600	550	660	24	6
315L	4-8	650	500	495	195	80	M20X42	170	130	22	71	14	M64X2	1300	1360	417	24	600	550	660	24	6
355M	2	735	645	640	330	75	M24X50	140	110	20	67.5	12	M72X2	1500	1670	420	25	740	680	800	24	6
355L	2	735	645	640	330	75	M24X50	140	110	20	67.5	12	M72X2	1500	1670	420	25	740	680	800	24	6
355M	4-8	735	645	640	330	95	M24X50	170	140	25	86	14	M72X2	1530	1700	450	25	740	680	800	24	6
355L	4-8	735	645	640	330	95	M24X50	170	140	25	86	14	M72X2	1530	1700	450	25	740	680	800	24	6
tips：The'R'dimensions is zero.The 'DH'defaults to a non-threaded center hole and it can be machined into a threaded hole as required,The dimension of 'L'and 'LM'with tolerance +-5 for frame 80-132,tolerance +-8 for frame 160-355.Due to the motors with frame size 355 have various powers,the installation size is different,please consult the external outline drawing when ordering.

Fan parameters of IC416 series
Motor Frame	type		Power（kW）		Speed（r/min）		Pa	m3/h		Noise dB(A)
80	G80A		28		2600		60	350		50
90	G90A		30		2600		80	500		50
100	G100A		45		2600		82	650		55
112	G112A		50		2600		110	1000		60
132	G132A		40		1300		70	880		60
160	G160A		80		1300		40	1100		60
180	G180A		105		1360		105	2280		61
200	G200A		150		1400		108	2280		62
225	G225A		190		1370		110	3980		66
250	G250A		250		1380		110	4760		68
280	G280A		420		1350		120	6560		72
315	G315A		550		1330		122	8740		75
355	G355A		850		1360		120	12250		78
Bearings
B3、B35、B5
Frame Size		Driving End				Non-driving End
		2(pole)		4.6、8（pole）		2(pole)			4、6、8(pole)
80		6204ZZ/C3		6204ZZ/C3		6204ZZ/C3			6204ZZ/C3
90		6205ZZ/C3		6205ZZ/C3		6205ZZ/C3			6205ZZ/C3
100		6206ZZ/C3		6206ZZ/C3		6206ZZ/C3			6206ZZ/C3
112		6306ZZ/C3		6306ZZ/C3		6306ZZ/C3			6306ZZ/C3
132		6308ZZ/C3		6308ZZ/C3		6308ZZ/C3			6308ZZ/C3
160		6309ZZ/C3		6309ZZ/C3		6309ZZ/C3			6309ZZ/C3
180		6311C3		6311C3		6311C3			6311C3
200		6312C3		6312C3		6312C3			6312C3
225		6313C3		6313C3		6313C3			6313C3
250		6314C3		6314C3		6314C3			6314C3
280		6314C3		6317C3		6314C3			6317C3
315		6316C3		6319C3(N319)		6316C3			6319C3
355		6319C3		6322C3(N322)		6319C3			6322C3
V1
Frame Size		Driving End				Non-driving Ena
		2(pole)		4.6、8(pole)		2(pole)			4.6、8(pole)
315		6316C3		6319C3(N319)		6316C3			7319
355		6319C3		6322C3(N322)		7319			7322

YVF2 (YVP) series variable frequency speed regulation motor

Product Categories

Quick Links

Quickly Inquiry
