YBBP Series Explosion-proof Inverter 3 phase asynchronous electric motor

Product name： YBBP Series Explosion-proof Inverter 3 phase asynchronous electric motor

Frame: 63-355

Power:0.55KW-375KW（0.75HP-502.88HP）

voltage（V）：380V or other

frequency（HZ）：2-pole frequency conversion range (3) 5-60, 70100HZ4, 6, 8, 10 pole frequency conversion range (3) 5-100HZ

protection grade：IP55 IP56

insulation class：F

Installation Method：B3,B5,B35

Cooling: Independent axial flow fan（IC416）

Efficiency:IE 3

scope of application：Places containing methane or other gases, underground coal mines, or explosive mixtures of combustible gases or vapors with air in factories.

Product advantages :

The stepless speed regulation has a wide range of speed regulation, good system speed regulation performance, and significant energy-saving effect. It adopts insulation materials that are resistant to high-frequency pulse voltage shocks, and independent fans are used for forced ventilation and cooling.

operating conditions:

Power supply conditions: voltage fluctuation within ± 5%, frequency fluctuation within ± 2%. The voltage and frequency fluctuate within 5% simultaneously, and the frequency fluctuation does not exceed 2%.

Place of use: Places containing methane or other gases, underground coal mines, or explosive mixtures of combustible gases or vapors with air in factories.

Ambient temperature: -15℃≤0≤40℃

Altitude: not exceeding 1000 meters

Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.

Technical Data:

2pole-3000rpm synchronous speed 50HZ
Motor Type	Rated Output(KW)	Rated Speed(rpm)	IFL 380V(A)	EFF(%)	Power Factor(COSφ)	Rated Torque(N.m)	Net Weight(kg)
YBBP-80M1-2	0.75	2855	1.8	77.4%	0.82	2.5	33
YBBP-80M2-2	1.1	2855	2.5	79.6%	0.83	3.7	34
YBBP-905-2	1.5	2875	3.3	81.3%	0.84	5.0	35
YBBP-90L-2	2.2	2875	4.7	83.2%	0.85	7.3	44
YBBP-100L-2	3	2880	6.2	84.6%	0.87	9.9	55
YBBP-112M-2	4	2900	8.0	85.8%	0.88	13.2	64
YBBP-132S1-2	5.5	2900	10.9	87.0%	0.88	18.1	95
YBBP-132S2-2	7.5	2900	14.5	88.1%	0.89	24.7	101
YBBP-160M1-2	11	2940	21.0	89.4%	0.89	35.7	157
YBBP-160M2-2	15	2940	28.4	90.3%	0.89	48.7	165
YBBP-160L-2	18.5	2940	34.7	90.9%	0.89	60.1	176
YBBP-180M-2	22	2955	41.1	91.3%	0.89	71.1	220
YBBP-200L1-2	30	2965	55.7	92.0%	0.89	96.6	280
YBBP-200L2-2	37	2965	68.3	92.5%	0.89	119.2	313
YBBP-225M-2	45	2970	82.7	92.9%	0.89	144.7	360
YBBP-250M-2	55	2975	100.7	93.2%	0.89	176.6	523
YBBP-280S-2	75	2975	136.5	93.8%	0.89	240.8	660
YBBP-280M-2	90	2975	163.3	94.1%	0.89	288.9	715
YBBP-315S-2	110	2980	196.9	94.3%	0.9	352.5	1000
YBBP-315M-2	132	2980	235.6	94.6%	0.9	423.0	1142
YBBP-315L1-2	160	2980	281.8	94.8%	0.91	512.8	1274
YBBP-315L2-2	200	2980	351.5	95.0%	0.91	640.9	1366
YBBP-355M1-2	220	2980	386.7	95.0%	0.91	705.0	1640
YBBP-355M2-2	250	2980	439.4	95.0%	0.91	801.2	1800
YBBP-355L1-2	280	2980	492.1	95.0%	0.91	897.3	1900
YBBP-355L2-2	315	2980	553.6	95.0%	0.91	1009.5	1960

4pole-1500rpm synchronous speed 50HZ
Motor Type	Rated Output(KW)	Rated Speed(rpm)	IFL 380V(A)	EFF(%)	Power Factor(COSφ)	Rated Torque(N.m)	Net Weight(kg)
YBBP-80M2-4	0.75	1400	1.9	79.6%	0.76	5.1	35
YBBP-90S-4	1.1	1425	2.7	81.4%	0.77	7.4	42
YBBP-90L-4	1.5	1425	3.5	82.8%	0.78	10.1	41
YBBP-100L1-4	2.2	1440	5.0	84.3%	0.8	14.6	54
YBBP-100L2-4	3	1440	6.6	85.5%	0.81	19.9	57
YBBP-112M-4	4	1450	8.7	86.6%	0.81	26.3	76
YBBP-132S-4	5.5	1455	11.6	87.7%	0.82	36.1	100
YBBP-132M-4	7.5	1455	15.5	88.7%	0.83	49.2	108
YBBP-160M-4	11	1465	22.4	89.8%	0.83	71.7	160
YBBP-160L-4	15	1465	29.9	90.6%	0.84	97.8	181
YBBP-180M-4	18.5	1470	36.3	91.2%	0.85	120.2	219
YBBP-180L-4	22	1475	42.9	91.6%	0.85	142.4	257
YBBP-200L-4	30	1475	58.1	92.3%	0.85	194.2	307
YBBP-225S-4	37	1480	70.5	92.7%	0.86	238.8	388
YBBP-225M-4	45	1480	85.4	93.1%	0.86	290.4	400
YBBP-250M-4	55	1480	103.9	93.5%	0.86	354.9	520
YBBP-280S-4	75	1485	139.3	94.0%	0.87	482.3	677
YBBP-280M-4	90	1485	165.0	94.2%	0.88	578.8	722
YBBP-315S-4	110	1485	198.7	94.5%	0.89	707.4	960
YBBP-315M-4	132	1485	238.0	94.7%	0.89	848.9	1090
YBBP-315L1-4	160	1485	284.6	94.9%	0.9	1029.0	1170
YBBP-315L2-4	200	1485	355.0	95.1%	0.9	1286.2	1414
YBBP-355M1-4	220	1490	390.5	95.1%	0.9	1410.1	1664
YBBP-355M2-4	250	1490	443.8	95.1%	0.9	1602.3	1780
YBBP-355L1-4	280	1490	497.1	95.1%	0.9	1794.6	1940
YBBP-355L2-4	315	1490	559.2	95.1%	0.9	2019.0	2040

6pole-1000rpm synchronous speed 50HZ
Motor Type	Rated Output(KW)		Rated Speed(rpm)		IFL 380V(A)		EFF(%)		Power Factor(COSφ)		Rated Torque(N.m)		Net Weight(kg)
YBBP-90S-6	0.75		935		2.1		75.9%		0.71		7.7		39
YBBP-90L-6	1.1		940		3.0		78.1%		0.72		11.2		47
YBBP-100L-6	1.5		945		4.0		79.8%		0.72		15.2		52
YBBP-112M-6	2.2		950		5.7		81.8%		0.72		22.1		70
YBBP-132S-6	3		960		7.6		83.3%		0.72		29.8		91
YBBP-132M1-6	4		960		9.7		84.6%		0.74		39.8		101
YBBP-132M2-6	5.5		960		13.0		86.0%		0.75		54.7		113
YBBP-160M-6	7.5		970		16.8		87.2%		0.78		73.8		161
YBBP-160L-6	11		970		23.9		88.7%		0.79		108.3		183
YBBP-180L-6	15		975		31.0		89.7%		0.82		146.9		220
YBBP-200L1-6	18.5		975		38.9		90.4%		0.8		181.2		272
YBBP-200L2-6	22		975		45.4		90.9%		0.81		215.5		298
YBBP-225M-6	30		985		60.6		91.7%		0.82		290.9		380
YBBP-250M-6	37		985		73.5		92.2%		0.83		358.7		475
YBBP-280S-6	45		985		86.8		92.7%		0.85		436.3		650
YBBP-280M-6	55		985		104.4		93.1%		0.86		533.2		680
YBBP-315S-6	75		990		144.8		93.7%		0.84		723.5		954
YBBP-315M-6	90		990		171.1		94.0%		0.85		868.2		1134
YBBP-315L1-6	110		990		208.5		94.3%		0.85		1061.1		1194
YBBP-315L2-6	132		990		246.5		94.6%		0.86		1273.3		1294
YBBP-3555-6	160		990		298.2		94.8%		0.86		1543.4		1680
YBBP-355M1-6	185		990		344.8		94.8%		0.86		1784.6		1765
YBBP-355M2-6	200		990		371.9		95.0%		0.86		1929.3		1860
YBBP-355L1-6	220		990		409.1		95.0%		0.86		2122.2		1989
YBBP-355L2-6	250		990		464.9		95.0%		0.86		2411.6		2053
8pole-750rpm synchronous speed 50HZ
Motor Type		Rated Output(KW)		Rated Speed(rpm)		IFL 380V(A)		EFF(%)		Power Factor(COSφ)		Rated Torque(N.m)		Net Weight(kg)
YBBP-100L1-8		0.75		690		2.6		66.2%		0.67		10.4		58
YBBP-100L2-8		1.1		690		3.4		70.8%		0.69		15.2		63
YBBP-112M-8		1.5		690		4.4		74.1%		0.70		20.8		75
YBBP-132S-8		2.2		710		6.1		77.6%		0.71		29.6		95
YBBP-132M-8		3		710		7.8		80.0%		0.73		40.4		102
YBBP-160M1-8		4		720		10.2		81.9%		0.73		53.1		146
YBBP-160M2-8		5.5		720		13.5		83.8%		0.74		73.0		156
YBBP-160L-8		7.5		720		17.8		85.3%		0.75		99.5		182
YBBP-180L-8		11		730		25.6		86.9%		0.75		143.9		240
YBBP-200L-8		15		730		34.1		88.0%		0.76		196.2		302
YBBP-225S-8		18.5		730		41.7		88.6%		0.76		242.0		342
YBBP-225M-8		22		740		48.1		89.1%		0.78		283.9		362
YBBP-250M-8		30		740		64.3		89.8%		0.79		387.2		502
YBBP-280S-8		37		740		78.8		90.3%		0.79		477.5		614
YBBP-280M-8		45		740		95.4		90.7%		0.79		580.7		640
YBBP-315S-8		55		740		113.4		91.0%		0.81		709.8		1004
YBBP-315M-8		75		740		153.6		91.6%		0.81		967.9		1169
YBBP-315L1-8		90		740		181.5		91.9%		0.82		1161.5		1354
YBBP-315L2-8		110		740		220.8		92.3%		0.82		1419.6		1394
YBBP-355S-8		132		740		264.1		92.6%		0.82		1704		1680
YBBP-355M-8		160		740		318.8		93.0%		0.82		2066		1860
YBBP-355L1-8		185		740		366.6		93.5%		0.82		2388		1970
YBBP-355L2-8		200		740		396.4		93.5%		0.82		2582		2060

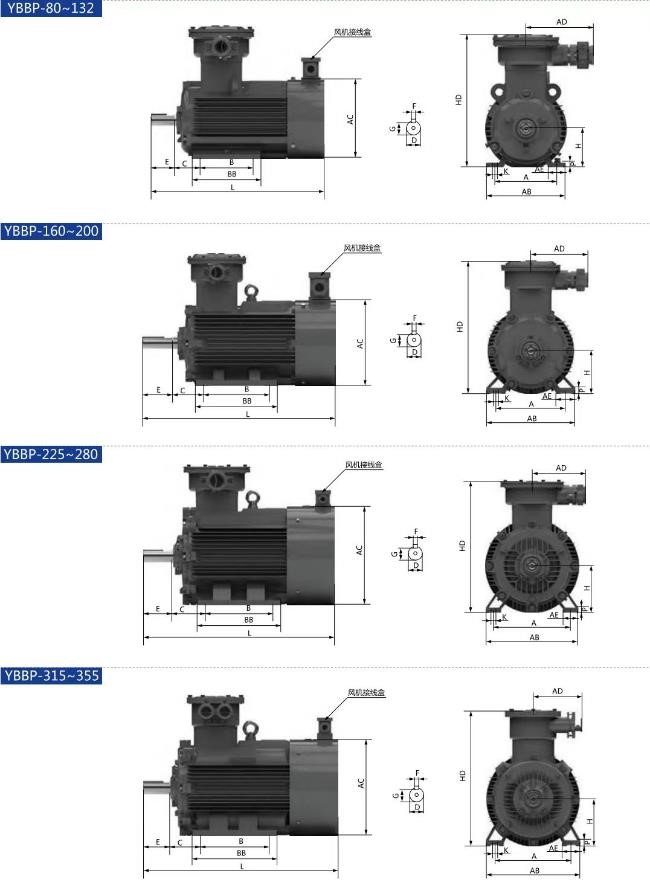

Dimensions Foot Mount B3:

YBBP Series Explosion-proof Inverter 3 phase asynchronous electric motor

Dimensions Foot Mount B3
RAME SZE	POLES	A	B	C	D	E	F	G	H	K	P	AB	BB	AC	AD	AE	HD	L
30M	2-8	125	100	50	19	40	6	15.5	80	10	10	160	130	167	178	34	305	520
90S	2-8	140	100	56	24	50	8	20	90	10	14	176	130	184	178	36	330	552
90L	2-8	140	125	56	24	50	8	20	90	10	14	176	155	184	178	36	330	577
100L	2-8	160	140	63	28	60	8	24	100	12	14	200	176	207	178	43	360	643
12M	2-8	190	140	70	28	60	8	24	112	12	16	240	180	221	193	50	390	675
132S	2-8	216	140	89	38	80	10	33	132	12	18	276	190	260	193	60	440	660
132M	2-8	216	178	89	38	80	10	33	132	12	18	276	230	260	193	60	440	700
160M	2-8	254	210	108	42	110	12	37	160	14.5	25	324	258	315	210	70	510	810
160L	2-8	254	254	108	42	110	12	37	160	14.5	25	324	302	315	210	70	510	840
180M	2-8	279	241	121	48	110	14	42.5	180	15	22	349	311	356	210	70	550	950
180L	2-8	279	279	121	48	110	14	42.5	180	15	22	349	349	356	210	70	550	970
200L	2-8	318	305	133	55	110	16	49	200	19	25	388	366	398	240	70	600	1010
225S	4、8	356	286	149	60	140	18	53	225	18.5	28	431	355	446	240	75	640	1060
225M	2	356	311	149	55	110	16	49	225	18.5	28	431	380	446	240	75	640	1060
225M	4-8	356	311	149	60	140	18	53	225	18.5	28	431	380	446	240	75	640	1090
250M	2	406	349	168	60	140	18	53	250	24	30	486	420	495	279	80	720	1150
250M	4-8	406	349	168	65	140	18	58	250	24	30	486	420	495	279	80	720	1150
280S	2	457	368	190	65	140	18	58	280	24	35	542	438	547	279	85	780	1290
280S	4-8	457	368	190	75	140	20	67.5	280	24	35	542	438	547	279	85	780	1290
280M	2	457	419	190	65	140	18	58	280	24	35	542	489	547	279	85	780	1350
280M	4-8	457	419	190	75	140	20	67.5	280	24	35	542	489	547	279	85	780	1350
315S	2	508	406	216	65	140	18	58	315	28	45	628	550	620	330	120	930	1410
315S	4-10	508	406	216	80	170	22	71	315	28	45	628	550	620	330	120	930	1440
315M	2	508	457	216	65	140	18	58	315	28	45	628	680	620	330	120	930	1530
315M	4-10	508	457	216	80	170	22	71	315	28	45	628	680	620	330	120	930	1560
315L	2	508	508	216	65	140	18	58	315	28	45	628	680	620	330	120	930	1530
315L	4-10	508	508	216	80	170	22	71	315	28	45	628	680	620	330	120	930	1560
3555	2	610	500	254	75	140	20	67.5	355	28	52	726	636	700	330	116	1070	1700
355S	4-10	610	500	254	95	170	25	86	355	28	52	726	636	700	330	116	1070	1730
355M	2	610	560	254	75	140	20	67.5	355	28	52	726	696	700	330	116	1070	1780
355M	4-10	610	560	254	95	170	25	86	355	28	52	726	696	700	330	116	1070	1810
355L	2	610	630	254	75	140	20	67.5	355	28	52	726	766	700	330	116	1070	1890
355L	4-10	610	630	254	95	170	25	86	355	28	52	726	766	700	330	116	1070	1920
(此外形图用于YBBP防爆等级为Exd Ⅱ BT4Gb

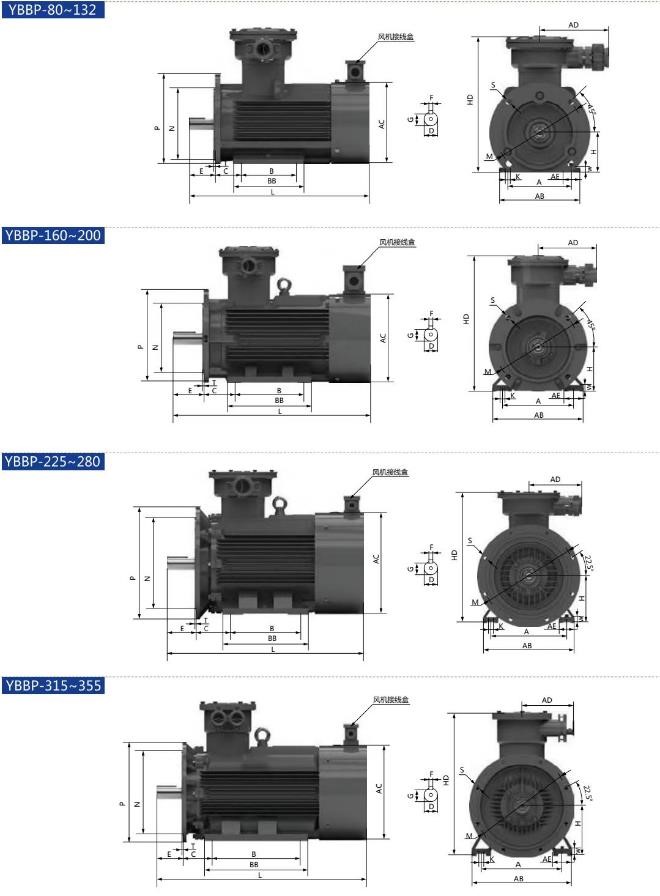

Dimensions Foot Mount B35:

YBBP Series Explosion-proof Inverter 3 phase asynchronous electric motor

Dimensions Foot-Flange Mount B35
FRAME SIZE	POLES	A	B	C	D	E	F	G	H	K	M	N	S	T	P	W	AB	BB	AC	AD	AE	HD	L
80M	2-8	125	100	50	19	40	6	15.5	80	10	165	130	12	3.5	200	10	160	130	167	178	34	305	520
90S	2-8	140	100	56	24	50	8	20	90	10	165	130	12	3.5	200	14	176	130	184	178	36	330	552
90L	2-8	140	125	56	24	50	8	20	90	10	165	130	12	3.5	200	14	176	155	184	178	36	330	577
100L	2-8	160	140	63	28	60	8	24	100	12	215	180	15	4	250	14	200	176	207	178	43	360	643
112M	2-8	190	140	70	28	60	8	24	112	12	215	180	15	4	250	16	240	180	221	193	50	390	675
132S	2-8	216	140	89	38	80	10	33	132	12	265	230	15	4	300	18	276	190	260	193	60	440	660
132M	2-8	216	178	89	38	80	10	33	132	12	265	230	15	4	300	18	276	230	260	193	60	440	700
160M	2-8	254	210	108	42	110	12	37	160	14.5	300	250	19	5	350	25	324	258	315	210	70	510	810
160L	2-8	254	254	108	42	110	12	37	160	14.5	300	250	19	5	350	25	324	302	315	210	70	510	840
180M	2-8	279	241	121	48	110	14	42.5	180	15	300	250	19	5	350	22	349	311	356	210	70	550	950
180L	2-8	279	279	121	48	110	14	42.5	180	15	300	250	19	5	350	22	349	349	356	210	70	550	970
200L	2-8	318	305	133	55	110	16	49	200	19	350	300	19	5	400	25	388	366	398	240	70	600	1010
225S	4、8	356	286	149	60	140	18	53	225	18.5	400	350	19	5	450	28	431	355	446	240	75	640	1060
225M	2	356	311	149	55	110	16	49	225	18.5	400	350	19	5	450	28	431	380	446	240	75	640	1060
225M	4-8	356	311	149	60	140	18	53	225	18.5	400	350	19	5	450	28	431	380	446	240	75	640	1090
250M	2	406	349	168	60	140	18	53	250	24	500	450	19	5	550	30	486	420	495	279	80	720	1150
250M	4-8	406	349	168	65	140	18	58	250	24	500	450	19	5	550	30	486	420	495	279	80	720	1150
2805	2	457	368	190	65	140	18	58	280	24	500	450	19	5	550	35	542	438	547	279	85	780	1290
280S	4-8	457	368	190	75	140	20	67.5	280	24	500	450	19	5	550	35	542	438	547	279	85	780	1290
280M	2	457	419	190	65	140	18	58	280	24	500	450	19	5	550	35	542	489	547	279	85	780	1350
280M	4-8	457	419	190	75	140	20	67.5	280	24	500	450	19	5	550	35	542	489	547	279	85	780	1350
315S	2	508	406	216	65	140	18	58	315	28	600	550	24	6	660	45	628	550	620	330	120	930	1410
315S	4-10	508	406	216	80	170	22	71	315	28	600	550	24	6	660	45	628	550	620	330	120	930	1440
315M	2	508	457	216	65	140	18	58	315	28	600	550	24	6	660	45	628	680	620	330	120	930	1530
315M	4-10	508	457	216	80	170	22	71	315	28	600	550	24	6	660	45	628	680	620	330	120	930	1560
315L	2	508	508	216	65	140	18	58	315	28	600	550	24	6	660	45	628	680	620	330	120	930	1530
315L	4-10	508	508	216	80	170	22	71	315	28	600	550	24	6	660	45	628	680	620	330	120	930	1560
355S	2	610	500	254	75	140	20	67.5	355	28	740	680	24	6	800	52	726	636	700	330	116	1070	1700
355S	4-10	610	500	254	95	170	25	86	355	28	740	680	24	6	800	52	726	636	700	330	116	1070	1730
355M	2	610	560	254	75	140	20	67.5	355	28	740	680	24	6	800	52	726	696	700	330	116	1070	1780
355M	4-10	610	560	254	95	170	25	86	355	28	740	680	24	6	800	52	726	696	700	330	116	1070	1810
355L	2	610	630	254	75	140	20	67.5	355	28	740	680	24	6	800	52	726	766	700	330	116	1070	1890
355L	4-10	610	630	254	95	170	25	86	355	28	740	680	24	6	800	52	726	766	700	330	116	1070	1920
(此外形图用于YBBP 防爆等级为 Exd Ⅱ BT4Gb)

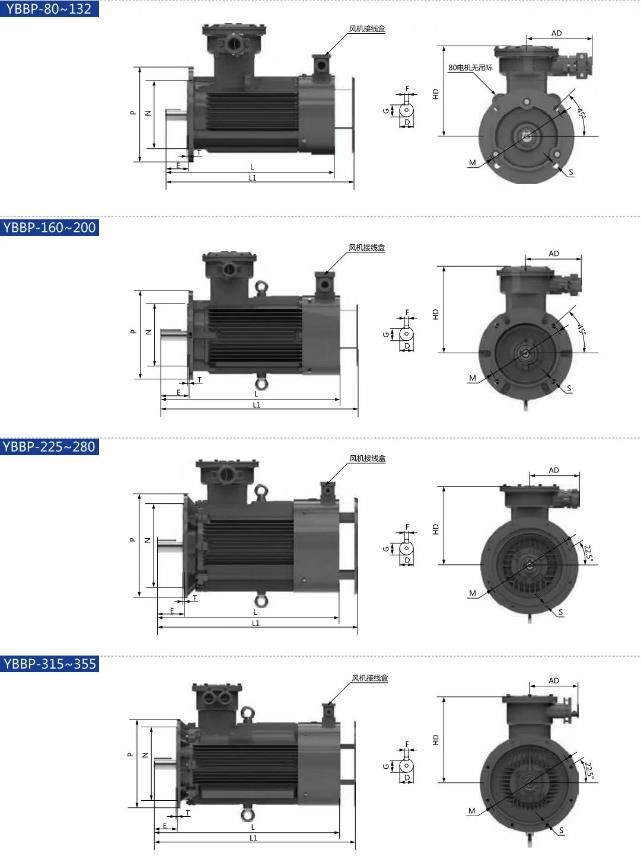

Dimensions Foot Mount B5&V1:

YBBP Series Explosion-proof Inverter 3 phase asynchronous electric motor

Dimensions Flange Mount B5&V1
FRAME SIZE	POLES	D	E	F	G	M	N	S	T	P	AD	HD	L(B5)	L1V1
80M	2-8	19	40	6	15.5	165	130	12	3.5	200	178	225	520	620
90S	2-8	24	50	8	20	165	130	12	3.5	200	178	240	552	652
90L	2-8	24	50	8	20	165	130	12	3.5	200	178	240	577	677
100L	2-8	28	60	8	24	215	180	15	4	250	178	260	643	743
112M	2-8	28	60	8	24	215	180	15	4	250	193	278	675	775
132S	2-8	38	80	10	33	265	230	15	4	300	193	308	660	760
132M	2-8	38	80	10	33	265	230	15	4	300	193	308	700	800
160M	2-8	42	110	12	37	300	250	19	5	350	210	350	810	910
160L	2-8	42	110	12	37	300	250	19	5	350	210	350	840	940
180M	2-8	48	110	14	42.5	300	250	19	5	350	210	370	950	1050
180L	2-8	48	110	14	42.5	300	250	19	5	350	210	370	970	1070
200L	2-8	55	110	16	49	350	300	19	5	400	240	400	1010	1110
225S	4、8	60	140	18	53	400	350	19	5	450	240	415	1060	1160
225M	2	55	110	16	49	400	350	19	5	450	240	415	1060	1160
225M	4-8	60	140	18	53	400	350	19	5	450	240	415	1090	1190
250M	2	60	140	18	53	500	450	19	5	550	279	470	1150	1250
250M	4-8	65	140	18	58	500	450	19	5	550	279	470	1150	1250
280S	2	65	140	18	58	500	450	19	5	550	279	500	1290	1390
280S	4-8	75	140	20	67.5	500	450	19	5	550	279	500	1290	1390
280M	2	65	140	18	58	500	450	19	5	550	279	500	1350	1450
280M	4-8	75	140	20	67.5	500	450	19	5	550	279	500	1350	1450
315S	2	65	140	18	58	600	550	24	6	660	330	615		1510
315S	4-10	80	170	22	71	600	550	24	6	660	330	615		1540
315M	2	65	140	18	58	600	550	24	6	660	330	615		1630
315M	4-10	80	170	22	71	600	550	24	6	660	330	615		1660
315L	2	65	140	18	58	600	550	24	6	660	330	615		1630
315L	4-10	80	170	22	71	600	550	24	6	660	330	615		1660
355S	2	75	140	20	67.5	740	680	24	6	800	330	715		1800
355S	4-10	95	170	25	86	740	680	24	6	800	330	715		1830
355M	2	75	140	20	67.5	740	680	24	6	800	330	715		1880
355M	4-10	95	170	25	86	740	680	24	6	800	330	715		1910
355L	2	75	140	20	67.5	740	680	24	6	800	330	715		1990
355L	4-10	95	170	25	86	740	680	24	6	800	330	715		2020
(此外形图用于YBBP 防爆等级为 Exd Ⅱ BT4Gb)

YBBP Series Explosion-proof Inverter 3 phase asynchronous electric motor

Product Categories

Quick Links

Quickly Inquiry
