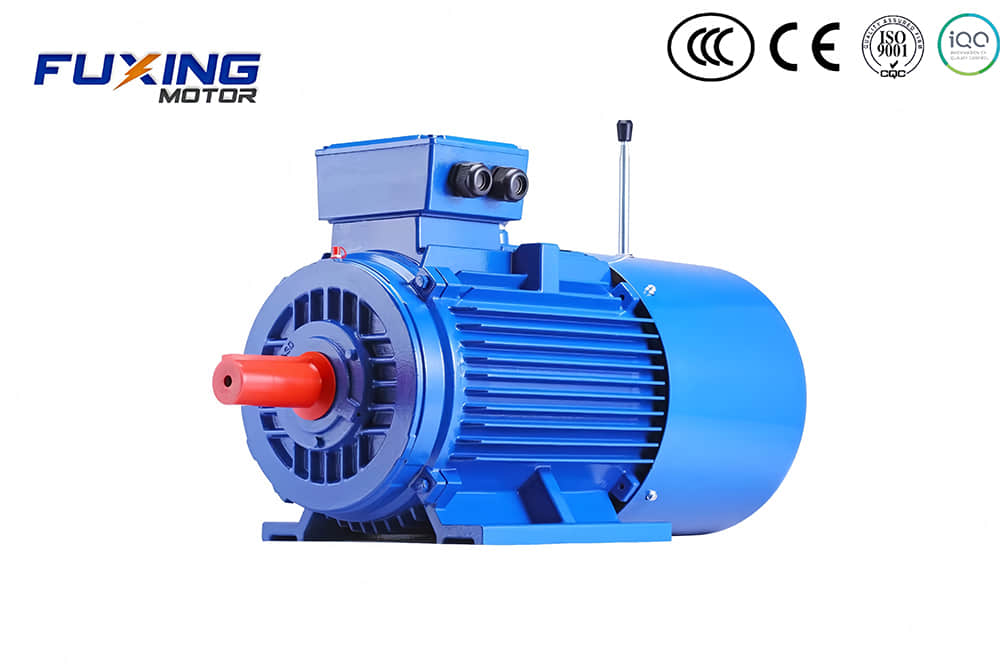

Product name：YEJ series brake motor
Frame: 80-225
Power:0.55KW-45KW（0.75HP-60HP）
number of poles：2.4.6.8P
voltage（V）：380V or other
frequency（HZ）：50HZ/60HZ
protection grade：IP55
insulation class：F
Installation Method：B3,B5,B35
Efficiency:IE 3
scope of application：
Product advantages :
Various machinery that require quick stopping, reciprocating operation, and prevention of sliding are used for spindle transmission and auxiliary transmission
Quick braking, simple structure, and accurate positioning.
operating conditions:
Power supply conditions: voltage fluctuation within ± 5%, frequency fluctuation within ± 2%. The voltage and frequency fluctuate within 5% simultaneously, and the frequency fluctuation does not exceed 2%.
Place of use: Cannot be used in environments containing flammable and explosive gases, chemically corrosive gases, or other harmful gases.
Ambient temperature: -15 ℃ ≤0≤40 ℃
Altitude: not exceeding 1000 meters
Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
